• W32MT1B W32MT1B W32MT1B W32MT1B W32MT1B W32MT1B
    W32MT1B


W32MT1B

Frameless TV

Resolution: HD (1366*768)

⁠2*10W Speaker

Wide Viewing Angle

High Contrast Ratio

⁠Vivid Colors

Energy Savings

⁠HDMI

⁠Nano Shield

⁠Aqua Seal




Software Configuration :
OSBasic
TV System ATV
Reception range48.25MHz~855.25MHz
Impedence
75Ω
Sound System
BG, DK, I
Stereo System Yes
OSD Language English/French/German/Italian/Spanish etc.
Panel Specification :
Backlight Unit LED
Aspect Ratio 16:09
Panel Size  32
Display Resolution 1366X 768
Brightness 150 ± 20 cd/m2
Contrast Ratio 3000:1
Active Display Area 697.685(H) × 392.256(V)
Response Time (Gray to Gray) 6.5 ms
Power Supply and Consumption:
Power Supply
100-240V~  50/60Hz
Power Consumption (Max)  60 W
Power Saving  < 0.5 W
Sound :
Audio Power Output 2 X 8 Watt
AmplifierYes

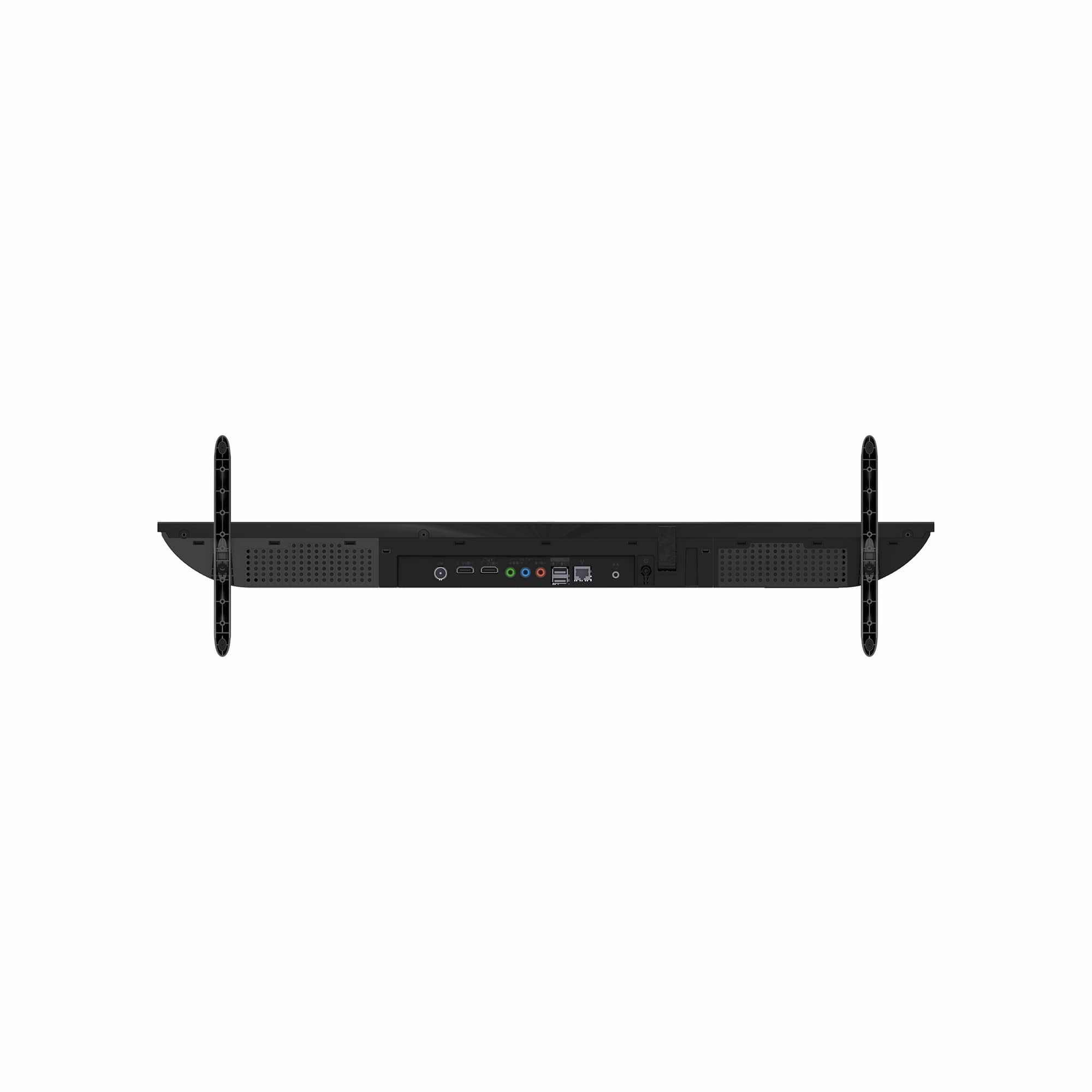

Terminals :
Optical Out  1
CVBS/Audio In1
HDMI In
3
ATV Tuner
USB 2
Earphone Out  1



TV Performance:
Noise ReductionYes
Weak Signal EnhancementYes
Comb Filter3D
Child Lock No
Dimensions & Weight :
Front Control (key) Power
Unit Dimension without Stand(mm) 718.8*61.3*419.9 (L*W*H)
Unit Dimension with Stand(mm)    718.8*204.2*469 (L*W*H)
Carton Dimension (mm)790*90*490
Container Loading(40'HQ) 1980pcs





​Warranty Information:

- Panel: 1 Year
- Spare Parts: 1 Year
- Free Service: 2 Years
- Remote: 6 Months


Note: This warranty does not cover any damage resulting from accidents, electrical faults, natural causes, or negligence. And Authority reserves the right to change, expand, correct, stop, or cancel the warranty period without prior notice.
Basic Specification
Type LED
Screen Size 55 inch
Resolution 3840 X 2160
Aspect Ratio 16:9,4:3
Viewing Angle H 178' / V 178'
Contrast Ratio 3000:1
Comb Filter 3D
Noise Reduction 3D
Video System PAL/NTSC
Sound System BG/D/K/I
