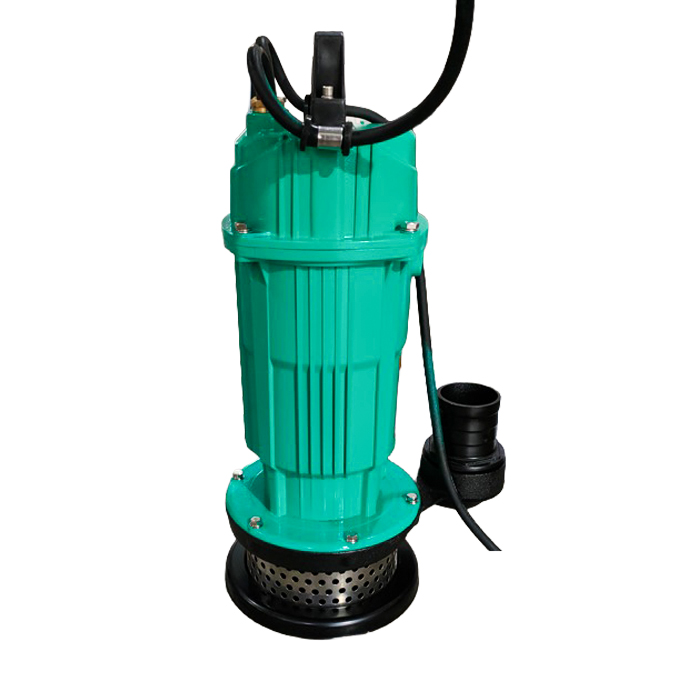

WP-1.0-WDX10-16
(MUD-C)
Built to handle thick mud, agricultural runoff, and heavy waste without clogging.
Rotor: Stainless steel 304.
High-quality C & U bearing.
Outlet Pipe: Cast iron instead of Plastic (High structural rigidity and superior abrasion resistance).
Tk. 10,300
Buy From Distributor
| Rated power | 1 hp (0.75 KW) |
| Operating Voltage | 180 – 220V(ac) |
| Frequency | 50Hz |
| Q (max) | 280 L/min |
| H (max) | 15 meters |
| Speed | 2850 RPM |
| Thermal Protection for Motor | 3.6 A |
| Capacitor | 20 μF±5%, 450VAC |
| Float Switch | PP Plastic, Cable length: 42cm, Weight: 200 gm |
| Delivery pipe diameter | 2 inches |
| Production Dimension(L*W*H) | 39.5cm*23cm*18cm |
| Product Weight | 10.5 kg |
.jpg)
Shaft Material: SS 304.
Impeller: Aluminum.
Insulation class: F.
Protection class: IP68.
Continuous service S1.
Power cable (3GO, 0.6mm2) Length: 25 ft.
Suction Delivery: 2”.
