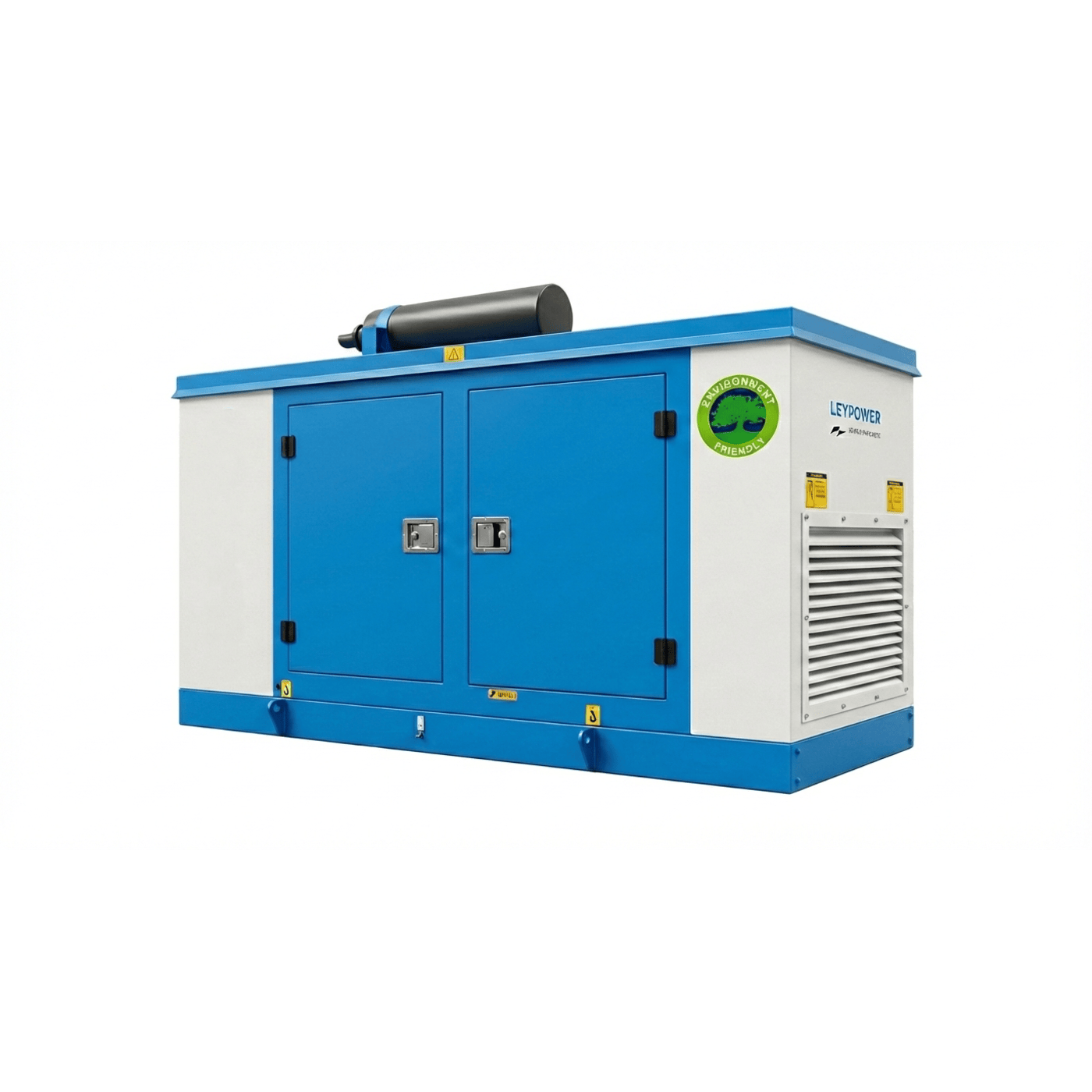

LeyPower 40KVA - 4 Stroke Diesel Engine - Water-cooled Cooling System - Turbocharged - Efficiency 93% - IP23 Protected - Self-ventilated air cooled |
| Brand | Ashoke Leyland |
|
Prime Power KVA/KW
|
40 KVA/ 32 KW
|
| Stand by Power KVA/KW | 44 KVA/ 35 KW |
| Overall Dimension (mm) | 2450mm*1050mm*1410mm |
| Overall Weight (Canopied) | 1086 |
| Noise (dB) | 75 |
| Engine: | |
| Brand | Ashoke Leyland |
| Model | LP40D |
| Type of Engine | 4 Stroke Diesel Engine |
| Number of Cylinders | 4 |
| Governing | Electronic/Mechanical |
| Bore/Stroke (mm) | 104 x 113 |
| Displacement (L) | 3.84 |
| Compression Ratio | 17.5 ± 0.5 : 1 |
| RPM | 1500 |
| Cooling System | Water-cooled |
| Turbo Charger | √ |
|
Specific Fuel Consumption
Liters/hour:
| |
|
75% Load
|
7.5
|
|
Weight of Engine (Kg)
|
365
|
|
Fuel Tank Capacity (L) | 140 |
| Engine oil capacity (L) | 8.5 |
| Coolant Capacity(L) | 13 |
|
Alternator (Generator):
| |
|
Brand
|
Stamford
|
| Model | S1L2-K1 |
| Type | Brushless |
| Rated Output Voltage | 400 VAC three phases |
| Frequency | 50 Hz |
| Number of Phases and Wires | 3 phase 4 wires |
| Power Factor (Cos Φ) | 0.8 |
| Ventilation | Self ventilated air cooled |
| Protection Class | IP23 |
| Insulation Class | H |
| Max Voltage Regulation | ±0.5% |
| Efficiency | 93% |
| AVR | Available |
|
Control System:
| |
|
Brand
|
Sedemac
|
| Model | GC1202 |
| Standard meters (what type of data will show?) | Genset output/genset
voltage/battery voltage /fuel capacity/engine speed/engine temperature/running time etc |
|
Standard Protection
Function:
| |
| Engine Protection | 1.Stop for over speed 2.Low oil pressure 3.High Coolant temperature 4.Fail to start/Cranking fail 5.Sensor fail |
|
Alternator Protection
|
1.Over Voltage2.Over
current 3.Over frequency 4.Voltage signal lost 5.Under frequency |
|
Genset Protection
|
1.Programmable I/O signal 2.Emergency stop |
Warranty Information:
- Main Parts: 1 Year
- Spare Parts: 1 Year
- After Sales Service: 1 Year
The battery is not included in the warranty.
Note: This warranty does not cover any damage due to accident,
electricity fault, natural causes or negligence. And Authority keeps the power
to change, expend, correction, stop or cancel the warranty period
without any prior notice.
– High-performance, fuel-efficient engine designed for smooth operation, durability, and reliable continuous power output.
– Advanced cooling system that maintains optimal temperature for enhanced engine life and stable heavy-duty performance.
– Boosted air intake system delivering higher power output, improved fuel efficiency, and superior load handling capability.
– Optimized energy conversion ensuring maximum output with reduced fuel consumption and lower operating costs with 93% Efficiency.
– Engineered with IP23 protection for safe and dependable operation in demanding industrial environments.
– Integrated airflow design for efficient heat dissipation and consistent, reliable performance.
– Advanced cooling system that maintains optimal temperature for enhanced engine life and stable heavy-duty performance.
– Boosted air intake system delivering higher power output, improved fuel efficiency, and superior load handling capability.
– Optimized energy conversion ensuring maximum output with reduced fuel consumption and lower operating costs with 93% Efficiency.
– Engineered with IP23 protection for safe and dependable operation in demanding industrial environments.
– Integrated airflow design for efficient heat dissipation and consistent, reliable performance.
