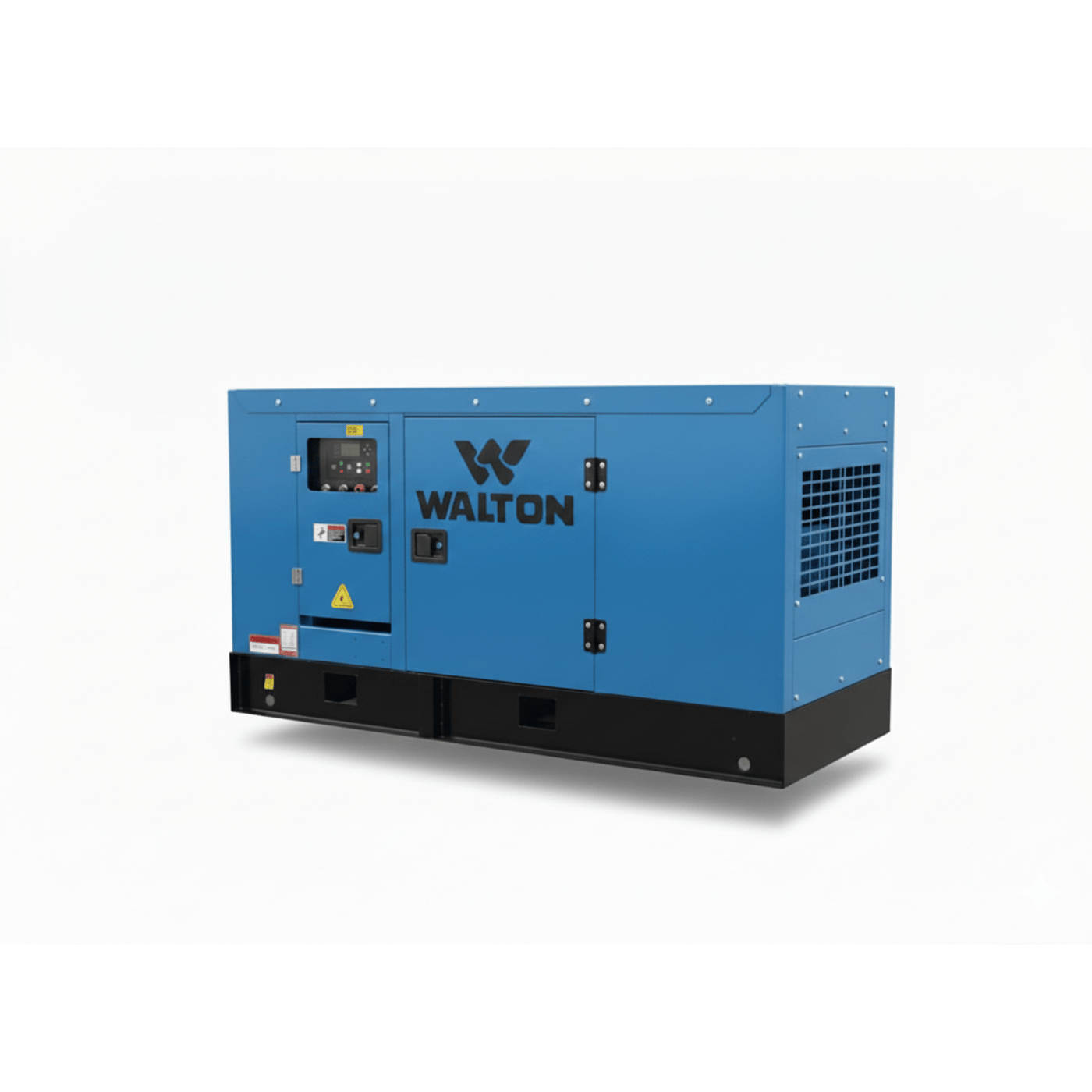

Galvatron 40KVA • High-performance 4-stroke diesel engine • Efficient water-cooled system • Turbocharged for enhanced power • Up to 88% overall efficiency • IP23 protected design • Integrated cooling fan ventilation system |
|
Prime Power KVA/KW
|
40 KVA/ 32 KW
|
| Stand by Power KVA/KW | 44 KVA/ 35 KW |
| Overall Dimension (mm) | 2000*900*1150 |
| Overall Weight (Canopied) | 800 KG |
| Noise (dB) | 75 |
| Engine | |
| Brand | WEICHAI |
| Model | WP2.3D40E200 |
| Type of Engine | 4 stroke, water-cooled |
| Number of Cylinders | 4 |
| Governing | Electronic |
| Bore/Stroke (mm) | 89*92 |
| Displacement (L) | 2.3 |
| Compression Ratio | 17.5:1 |
| RPM | 1500 |
| Cooling System | Water-cooled |
| Turbo Charger | √ |
|
Specific Fuel Consumption
Liters/hour:
| |
|
110% Load
|
11.2
|
|
100% Load
|
10.1
|
|
75% Load | 7.6 |
| 50% Load | 5.3 |
| Weight of Engine (Kg) | 235 |
| Fuel Tank Capacity (L) | 80 |
| Engine oil capacity (L) | 8 |
| Coolant Capacity(L) | 6.6 |
|
Alternator (Generator):
| |
|
Brand
|
WATTEK
|
| Model | WHI184H |
| Type | Self-excited, Brushless |
| Rated Output Voltage | 400V |
| Frequency | 50 Hz |
| Number of Phases and Wires | 3 Phases, 4 Wires |
| Power Factor (Cos Φ) | 0.8 |
| Ventilation | with a cooling fan |
| Protection Class | IP23 |
| Insulation Class | H |
| Max Voltage Regulation | ±1% |
| Efficiency | 88% |
| AVR | SX460 |
|
Control System
| |
|
Brand
|
SMARTGEN
|
| Model | HGM6110 |
| Standard meters (what type of data will show?) | Genset output/genset
voltage/battery voltage /fuel capacity/engine speed/engine temperature/running time,etc |
|
Standard Protection
Function:
| |
| Engine Protection | 1.Stop for over speed
2.Alarm for low/high battery voltage3.Low oil pressure 4.Low battery voltage 5.High Coolant temperature 6.Fail to start/Cranking fail 7.Sensor fail |
|
Alternator Protection
|
1.Over Voltage2.Over
current 3.Over frequency 4.Voltage signal lost 5.Under frequency |
|
Genset Protection
|
1.Programmable I/O signal
2.Emergency stop |
Warranty Information:
- Main Parts: 1 Year
- Spare Parts: 1 Year
- After Sales Service: 1 Year
The battery is not included in the warranty.
Note: This warranty does not cover any damage due to accident,
electricity fault, natural causes or negligence. And Authority keeps the power
to change, expend, correction, stop or cancel the warranty period
without any prior notice.
• High-performance 4-stroke diesel engine for reliable, fuel-efficient, and long-lasting operation
• Efficient water-cooled system ensuring stable temperature control and consistent performance
• Turbocharged for enhanced power output and improved fuel efficiency under load
• Up to 88% overall efficiency for optimized energy utilization and reduced operating costs
• IP23 protected design for safe and dependable use in demanding environments
• Integrated cooling fan ventilation system for effective heat dissipation and enhanced reliability
