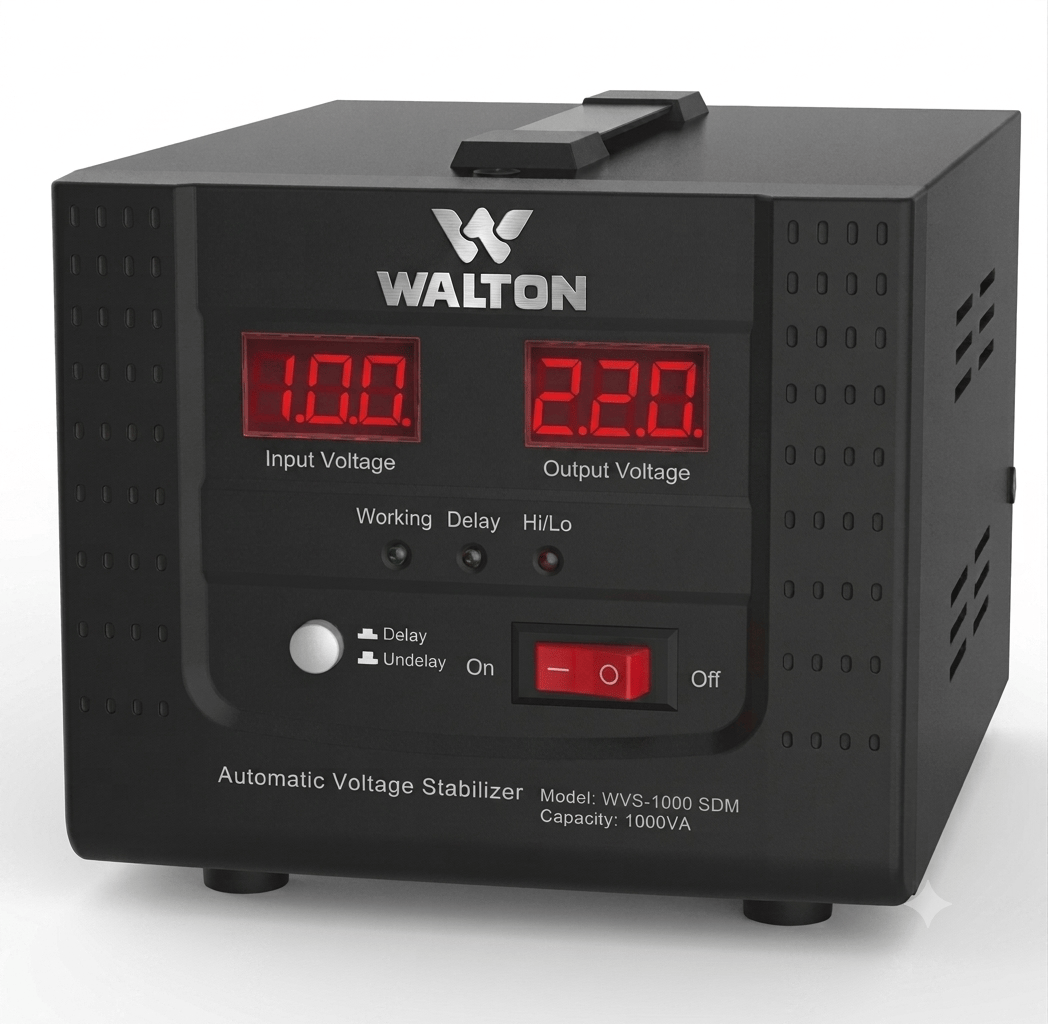

• WVS-1000 SDM

WVS 1000 SDM


- Advance CPU Control Circuit.
- Wide Input Voltage Range.
- Capacity:1000VA/800W (Max).
- Input Voltage Range: 100-280V.
​

General Specification:

Transformer

Toroidal Type

Capacity

1000VA

Regulated range

Input range: 100-260VAC; Output range: 205V-235V ±2V

Workable range

Input range: 80-280VAC; Output range: 160V-250V

Output Voltage

220V±8%

Delay

6 Sec/180 Sec

Response Time

500ms

Circuit Breaker

10A, 250VAC


Warranty Information:

- 2 years replacement warranty.

Note: This warranty does not cover any damage due to accident, electricity fault, natural causes or negligence. And Authority keeps the power to change, expend, correction, stop or cancel the warranty period without any prior notice.
- Microcontroller based design.
- Wide Input Voltage (100-280VAC).
- 3 LED indicator for power status (working, Delaying & Protecting).
- Digital LED Display.
- Selectable 6s / 180s delay operation.
- Protection System:
• High Voltage Protection.
• Low Voltage Protection.
• Overload Protection.
• Surge Voltage Protection.
• Over Current Protection.
• Over heat protection.
• Short Circuit protection.
