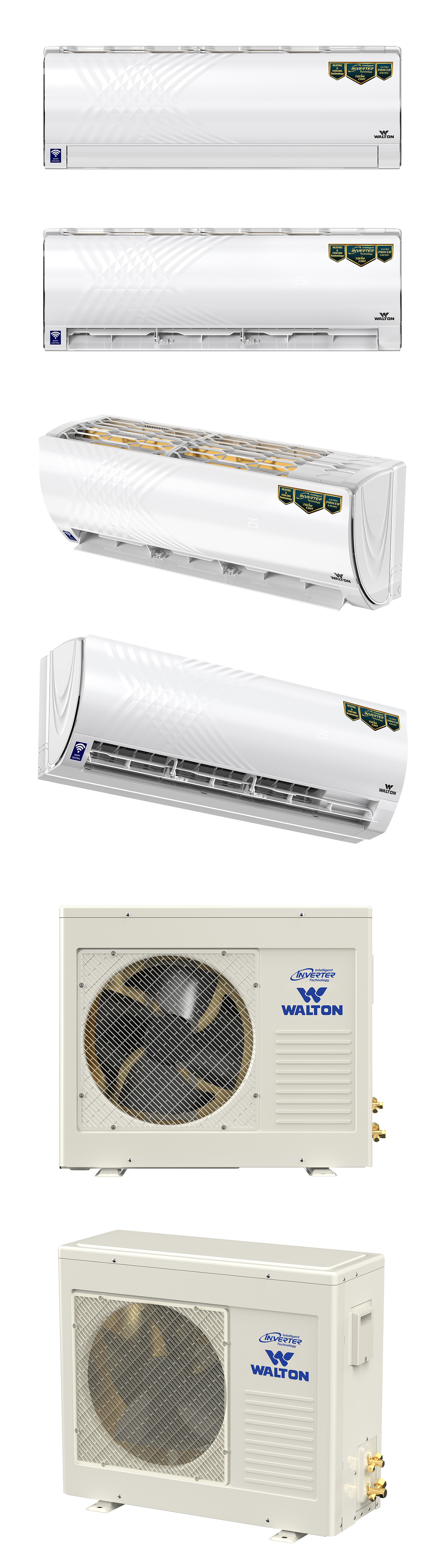

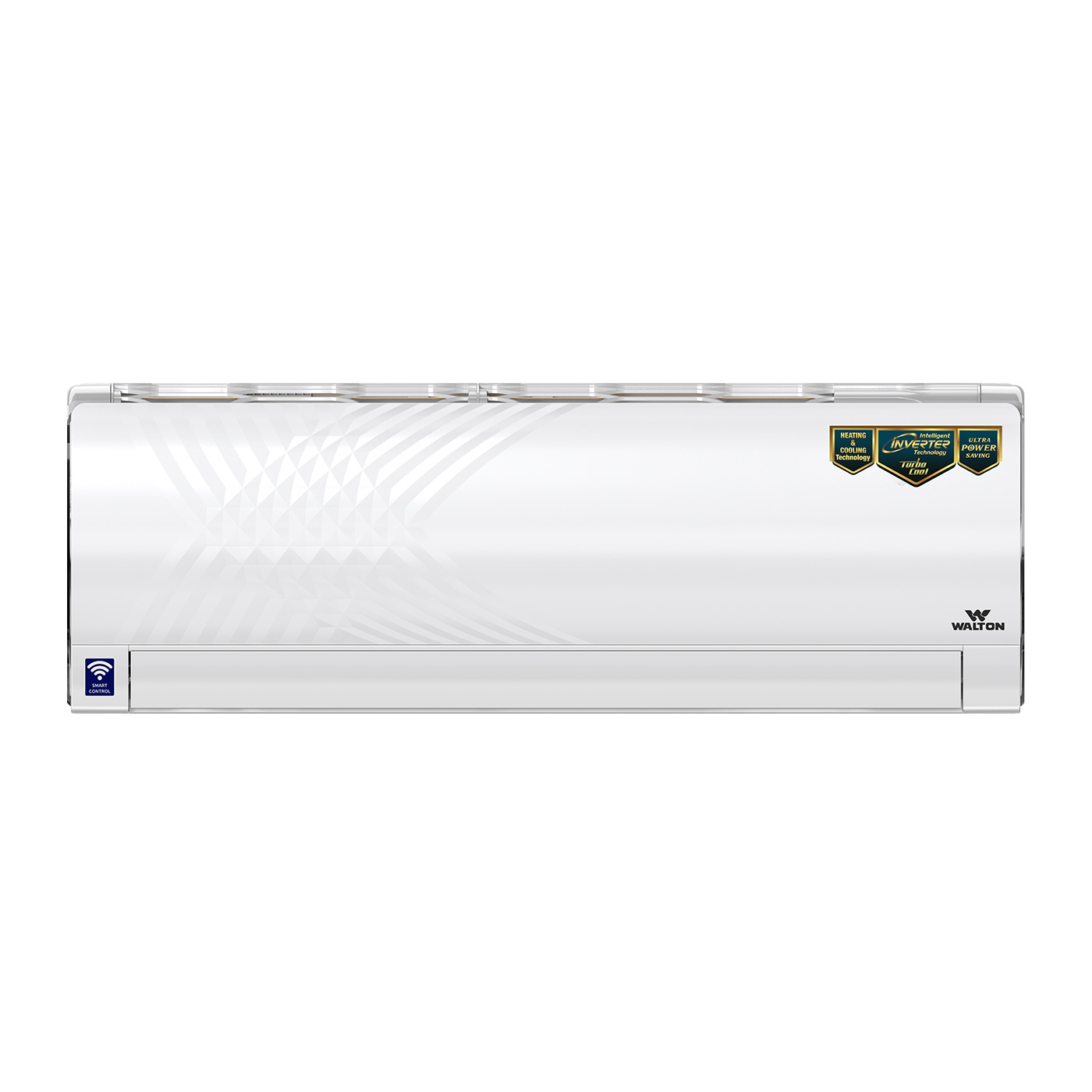

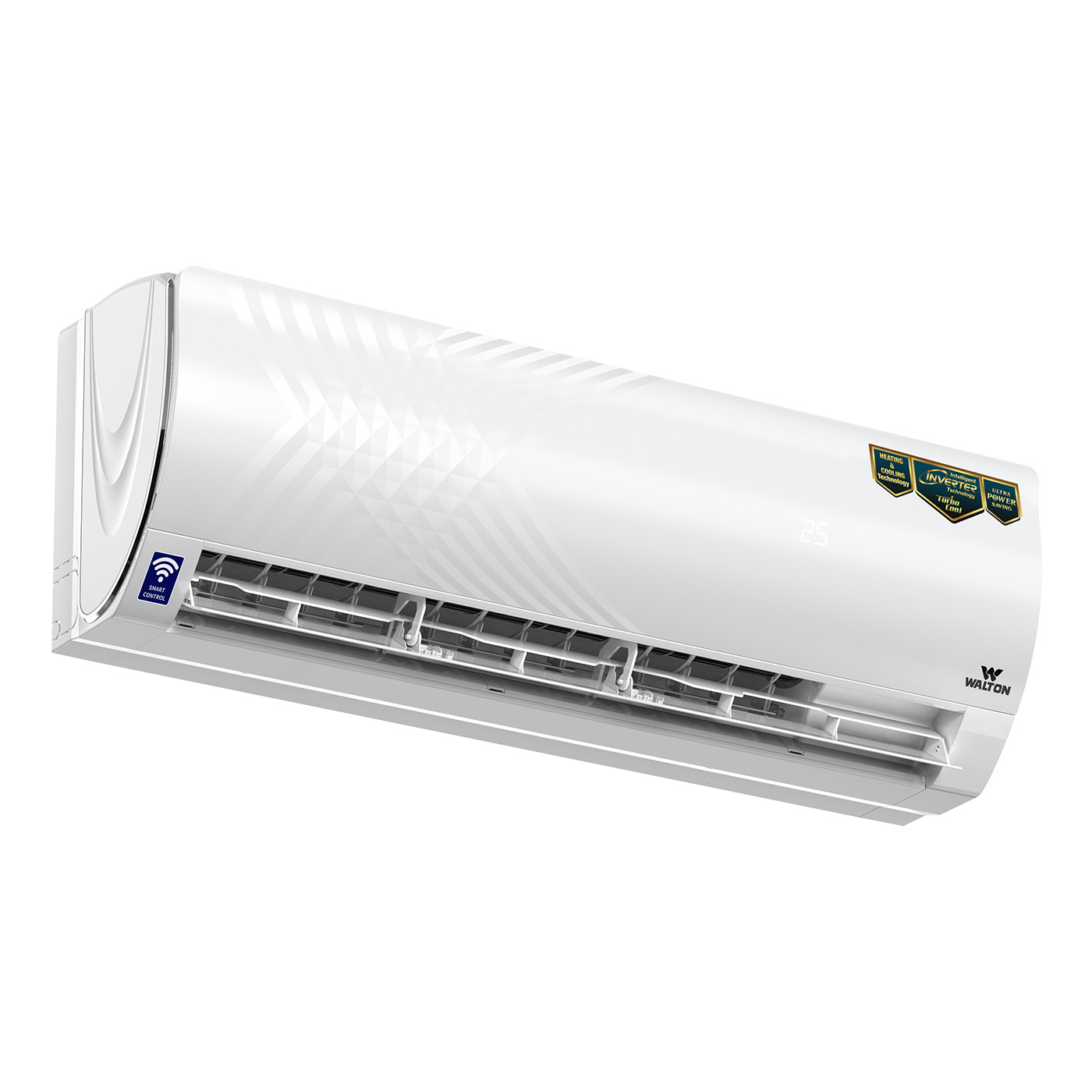

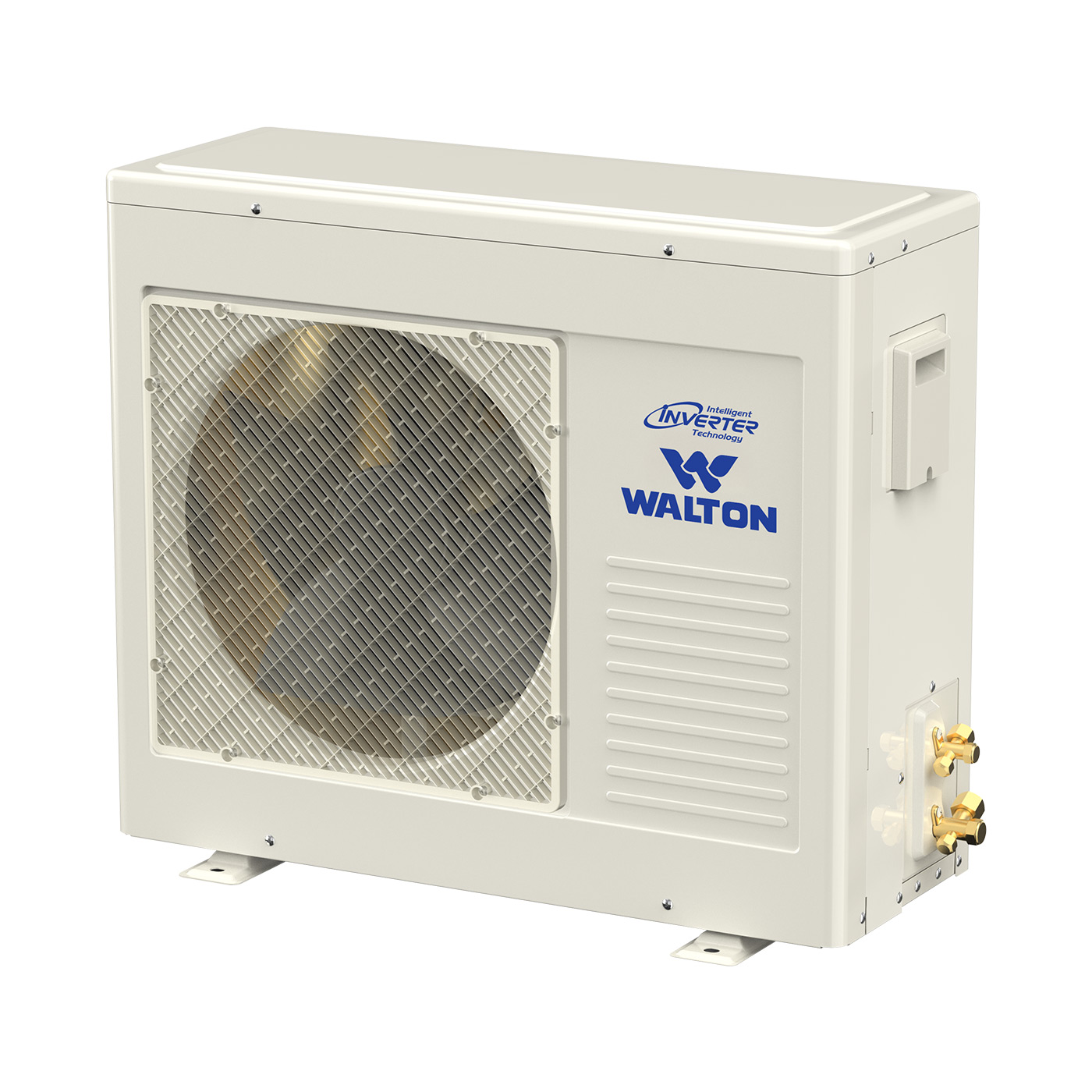

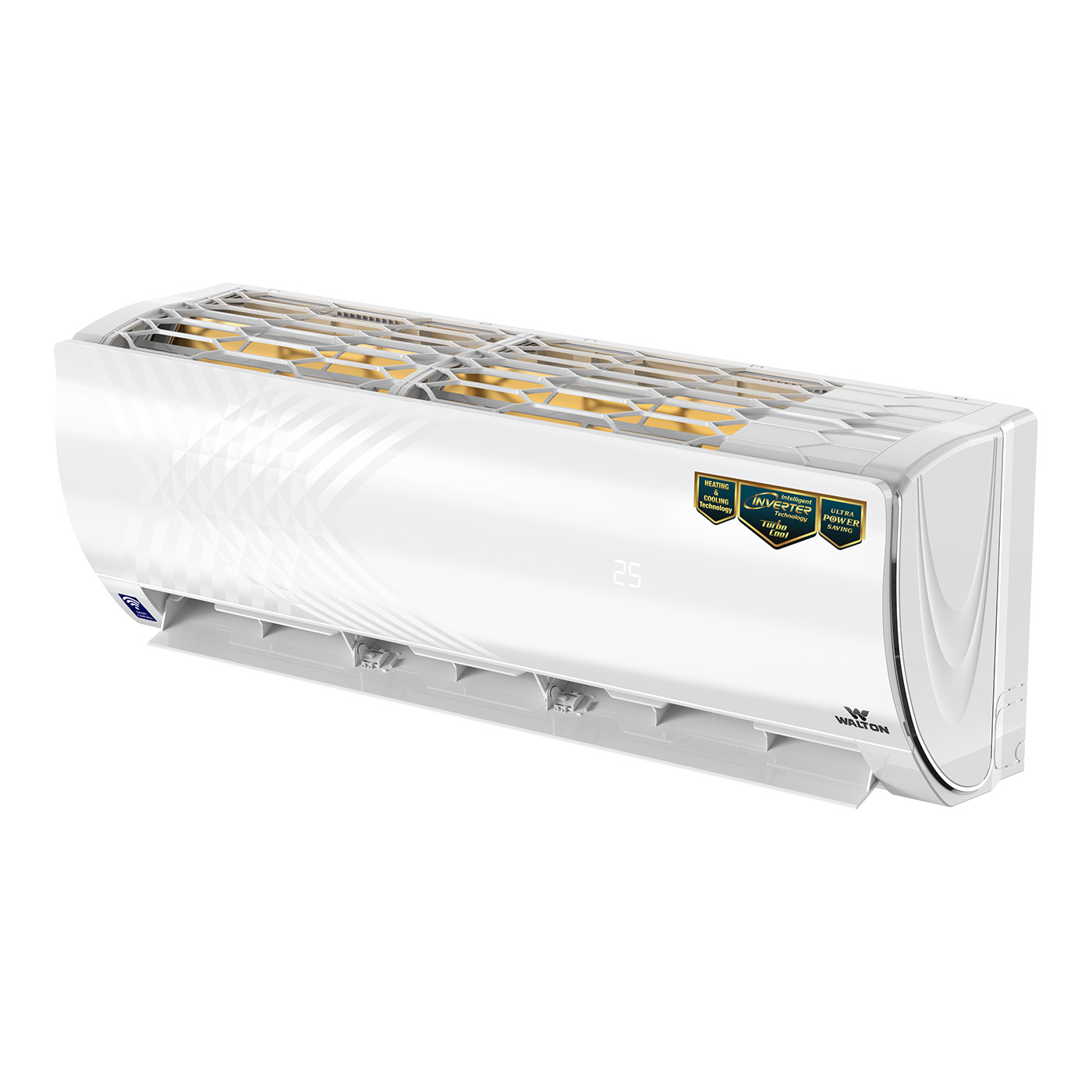

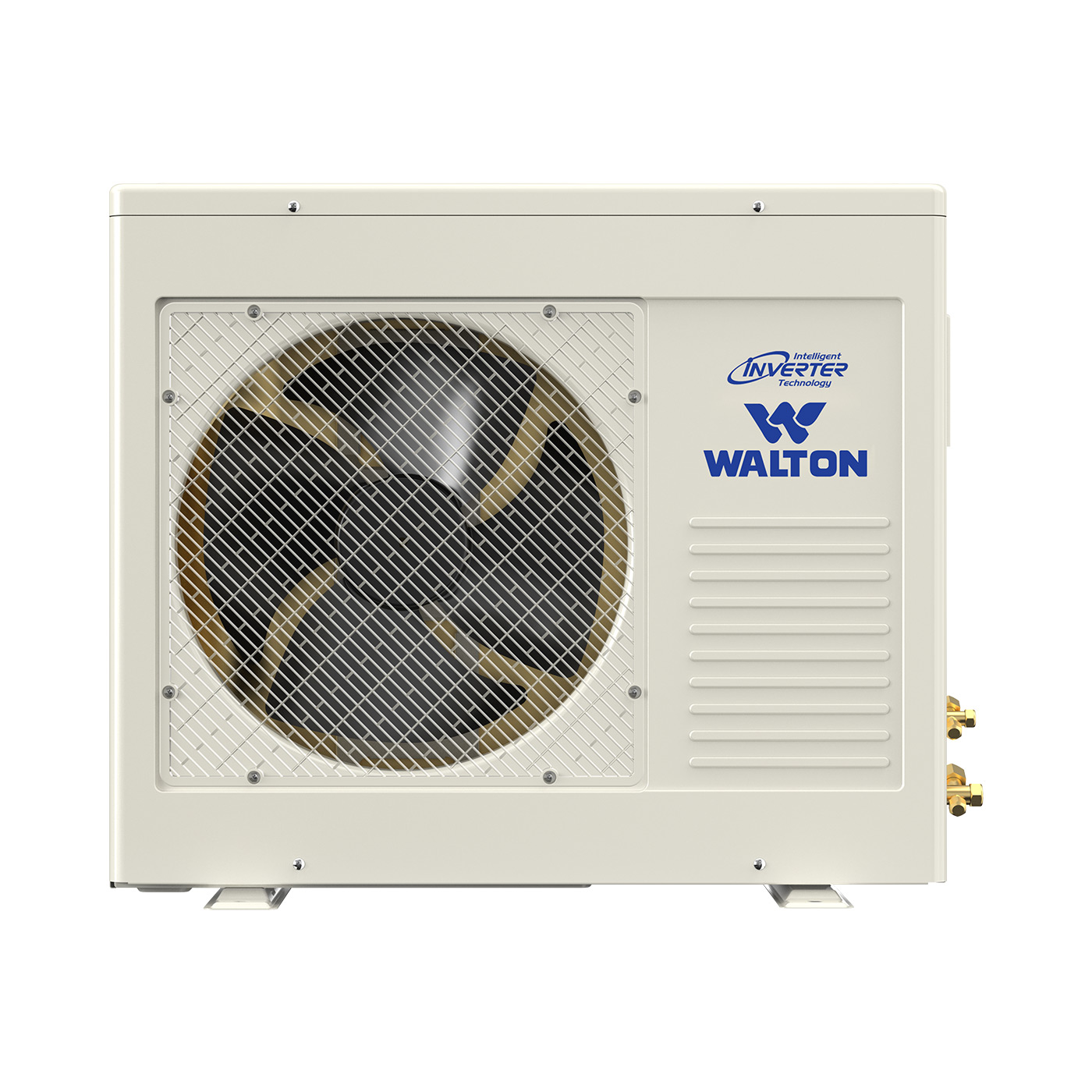

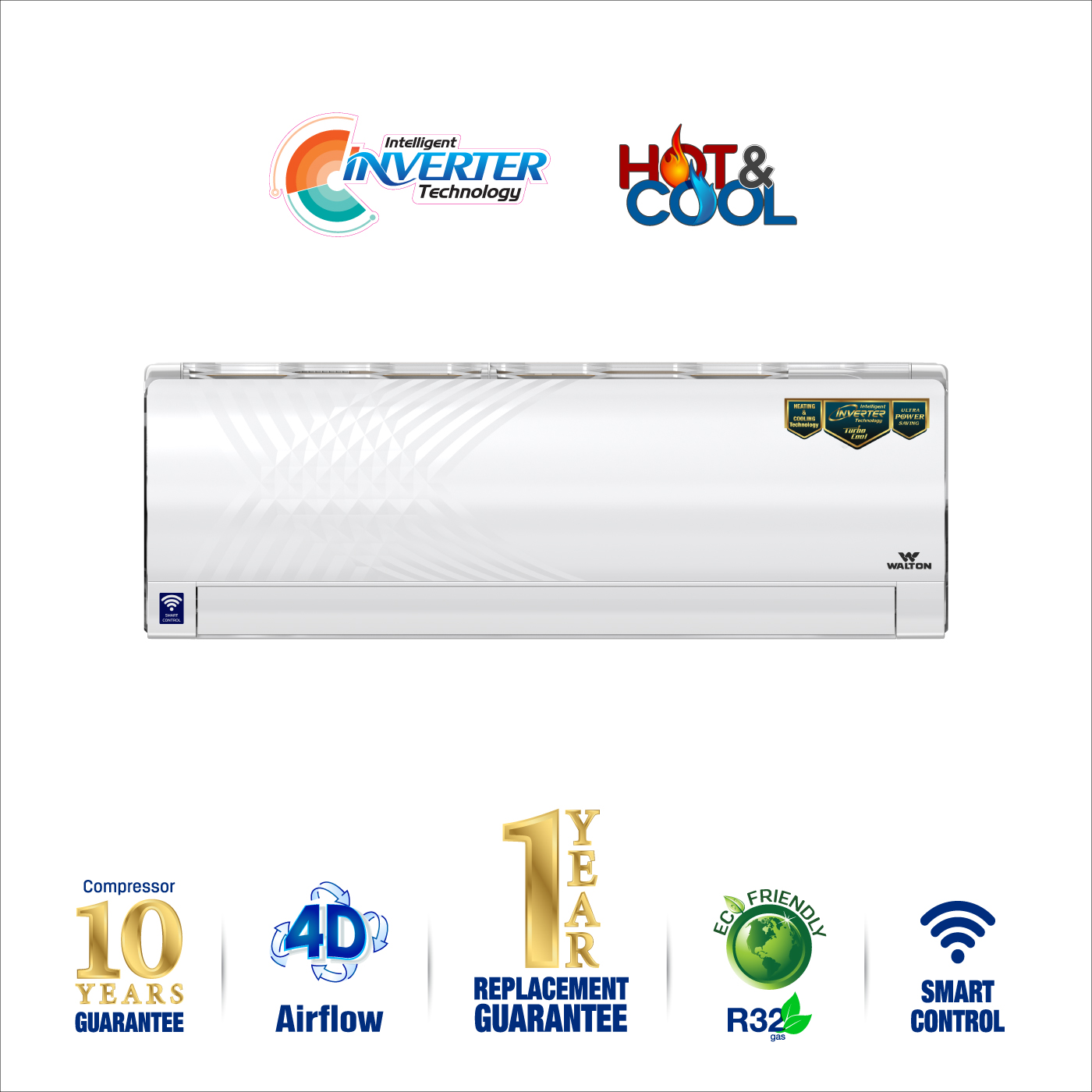

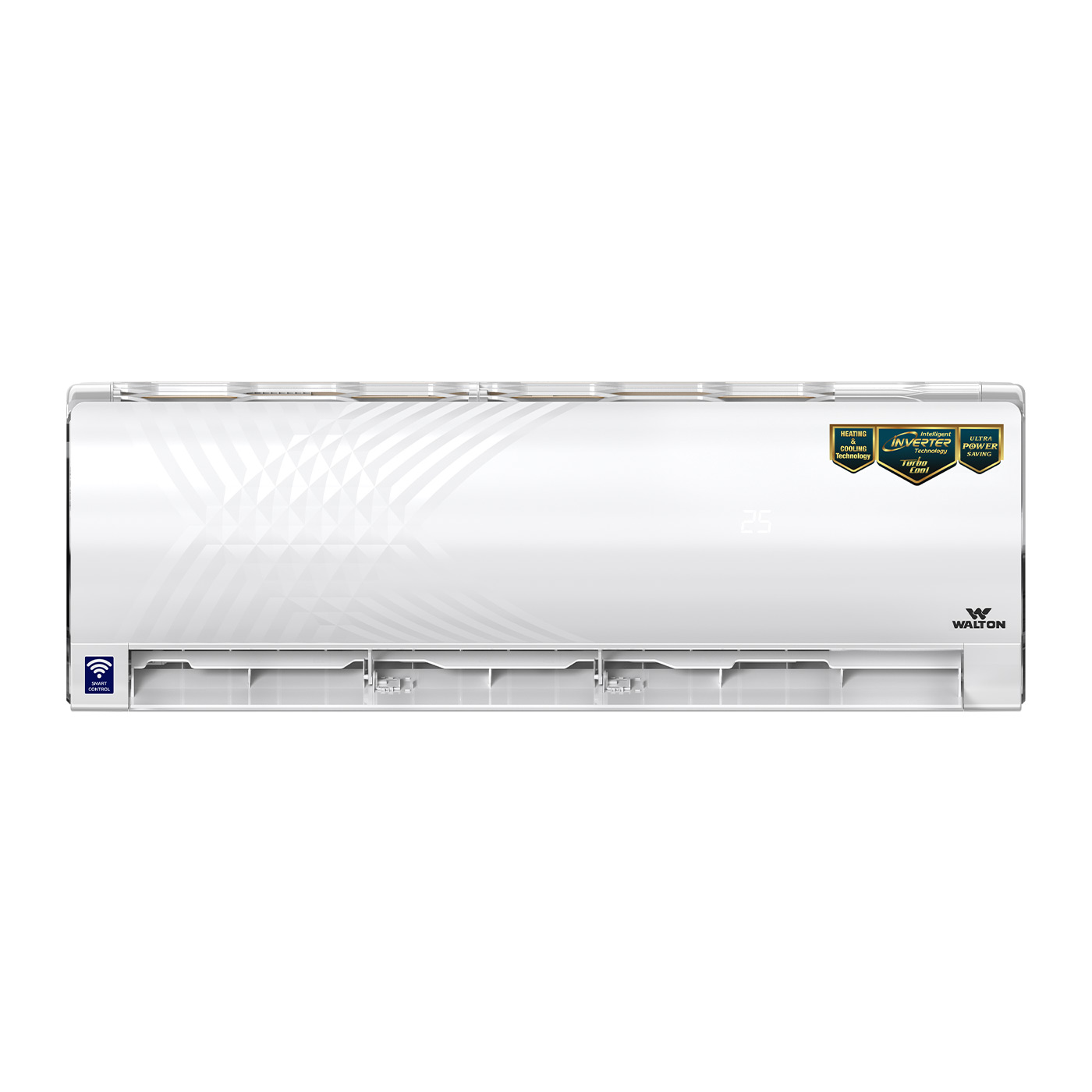

WSI-KRYSTALINE-18CH [SMART] |
|
| Air Conditioner Type | Intelligent Inverter |
| Function | Heating & Cooling |
| Cooling Capacity | 18000 BTU/Hr |
| 5275 Watts | |
| 1.5 Ton | |
| Compressor | Rotary (Inverter) |
| Refrigerant | R-32 |
| Function | Heating & Cooling | |
| BTU/hr | 18000 | |
| Rated Voltage | 230V~50Hz | |
| Cooling | Rated Current (A) | 6.44 |
| Rated Capacity (W) | 5275 | |
| Rated Input Power (W) | 1470 | |
| EER | 3.58 | |
| Cooling & Operating Range | 20˚C to 52˚C | |
| Heating | Rated Current (A) | 5.87 |
| Rated Capacity (W) | 5275 | |
| Rated Input Power (W) | 1342 |
|
| COP | 3.93 | |
| Heating & Operating Range | –7˚C to 24˚C | |
| Smart Control | Through App | |
| Guarantee/Warranty Information | |
Product Replacement Guarantee: 1 Year (Note: if there are manufacturing faults in the heat exchanger & compressor) |
|
| For Residential Usage | Compressor Guarantee: 10 Years |
| Spare Parts Support: 3 Years | |
| After Sales Service: 1 Year (Free) |
|
| For Commercial Usage | Compressor Guarantee: 5 Years |
| Spare Parts Support: 2 Years | |
| After Sales Service: 1 Year (Free) |
|
| Terms & Conditions | |
|
1. This warranty does not cover the following cases -
i) The warranty will be invalid if the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced modified by unauthorized service personnel.
ii) If the product serial number/barcode is removed, altered, or duplicated, the warranty will be invalid.
2. This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.
3. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
|
|
| User Manual | |
| English User Manual |  |
| Bangla User Manual | |
| Smart Control App User Manual | |
| Functions Of Remote Controller | |
The Above User Manuals Discuss About The Below Contents- Available Models, Safety, Useful Efficacy and Saving Electricity, Parts Identification, Connecting & Installing Indoor and Outdoor Unit, Cleaning and Precautions, Functions of Remote Controller, Function of Special Features, Actions to Be Done Before Repair and etc... Note: Smart Control App User Manual Is Only Applicable For Smart AC.
|
|
| Basic Features | |
| Heating Rated Current (A) | 18000 BTU |
| Basic Specification | |
| Function | Cooling |
| Refrigerant Type | R-410a |
