- Type: DECS

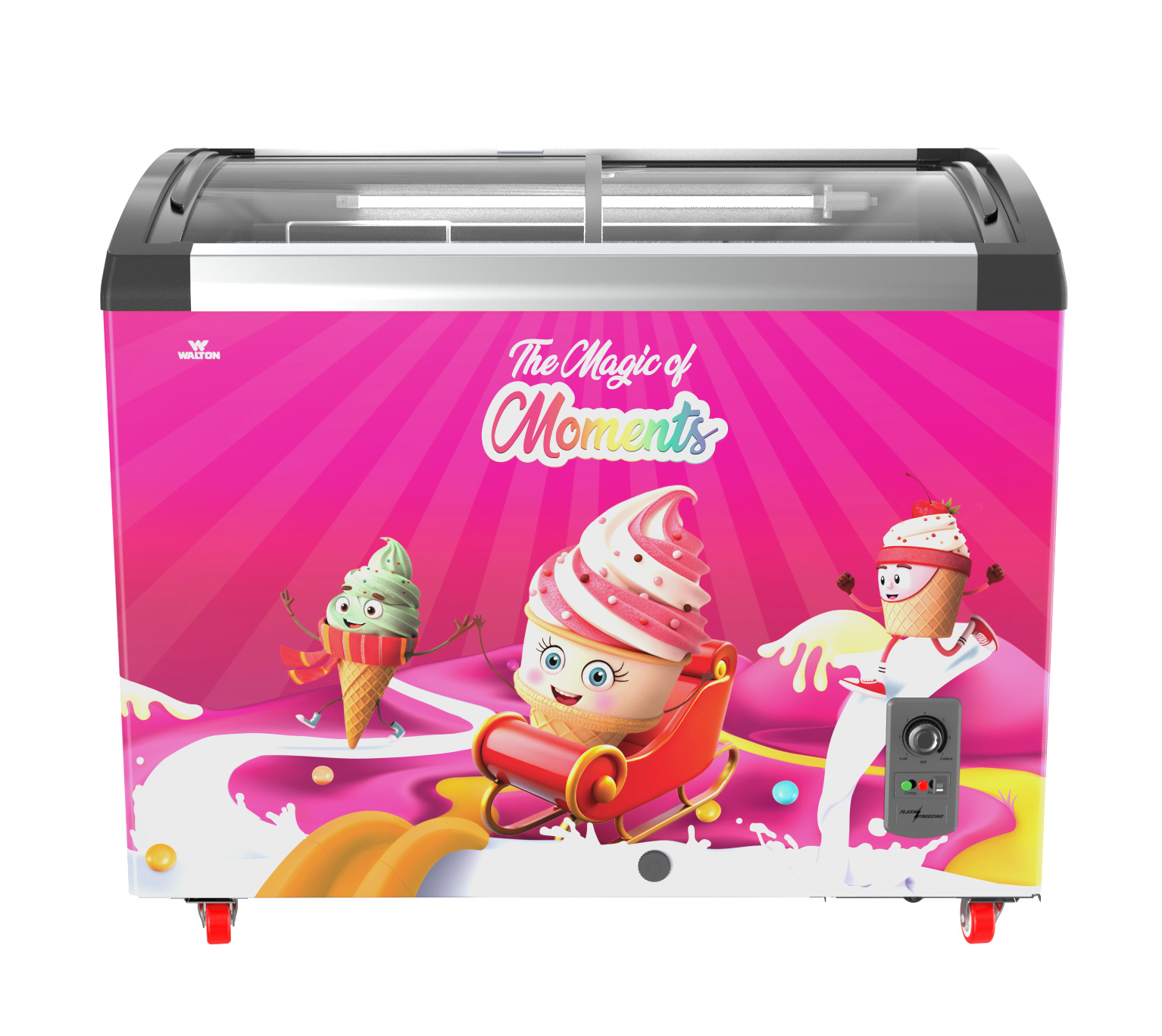

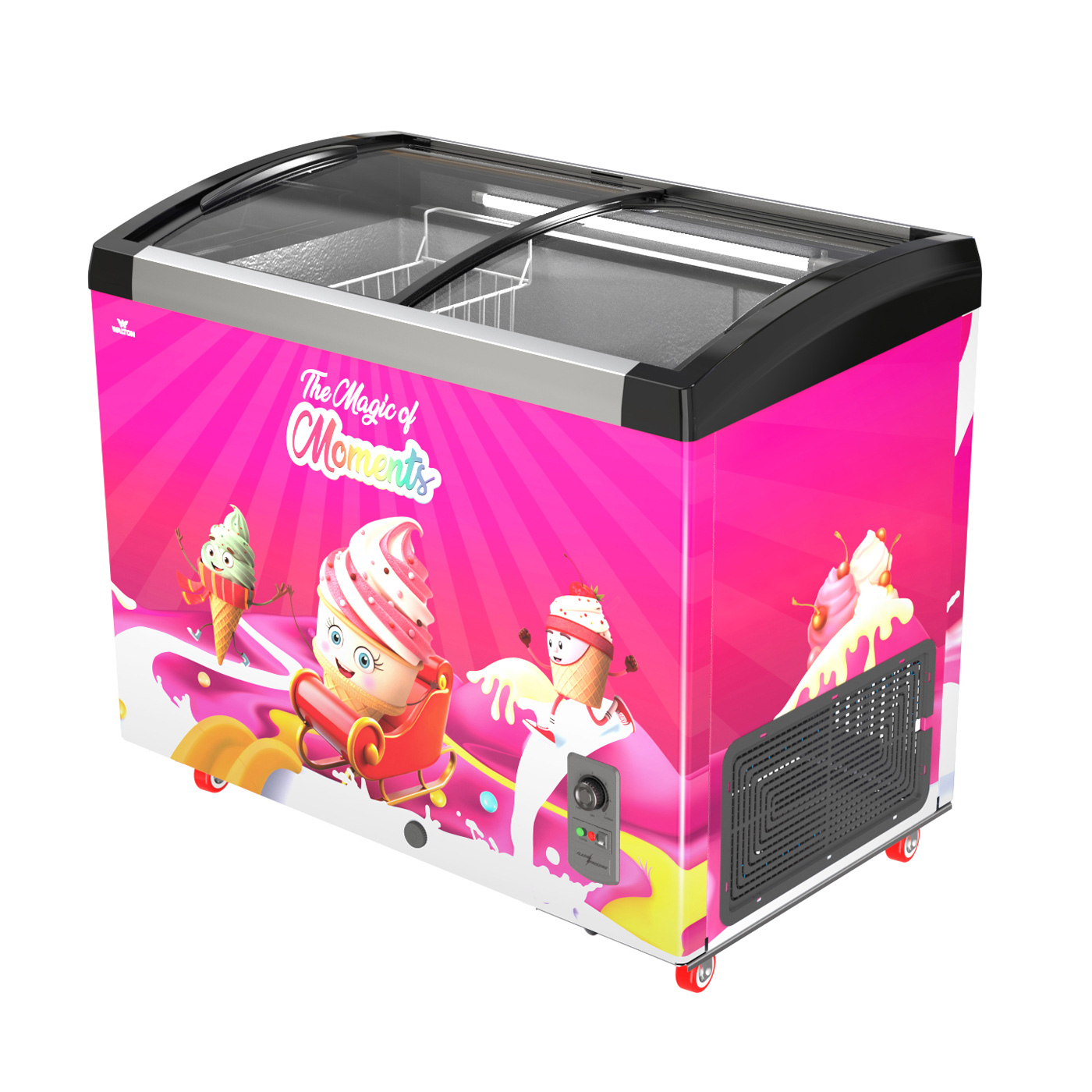

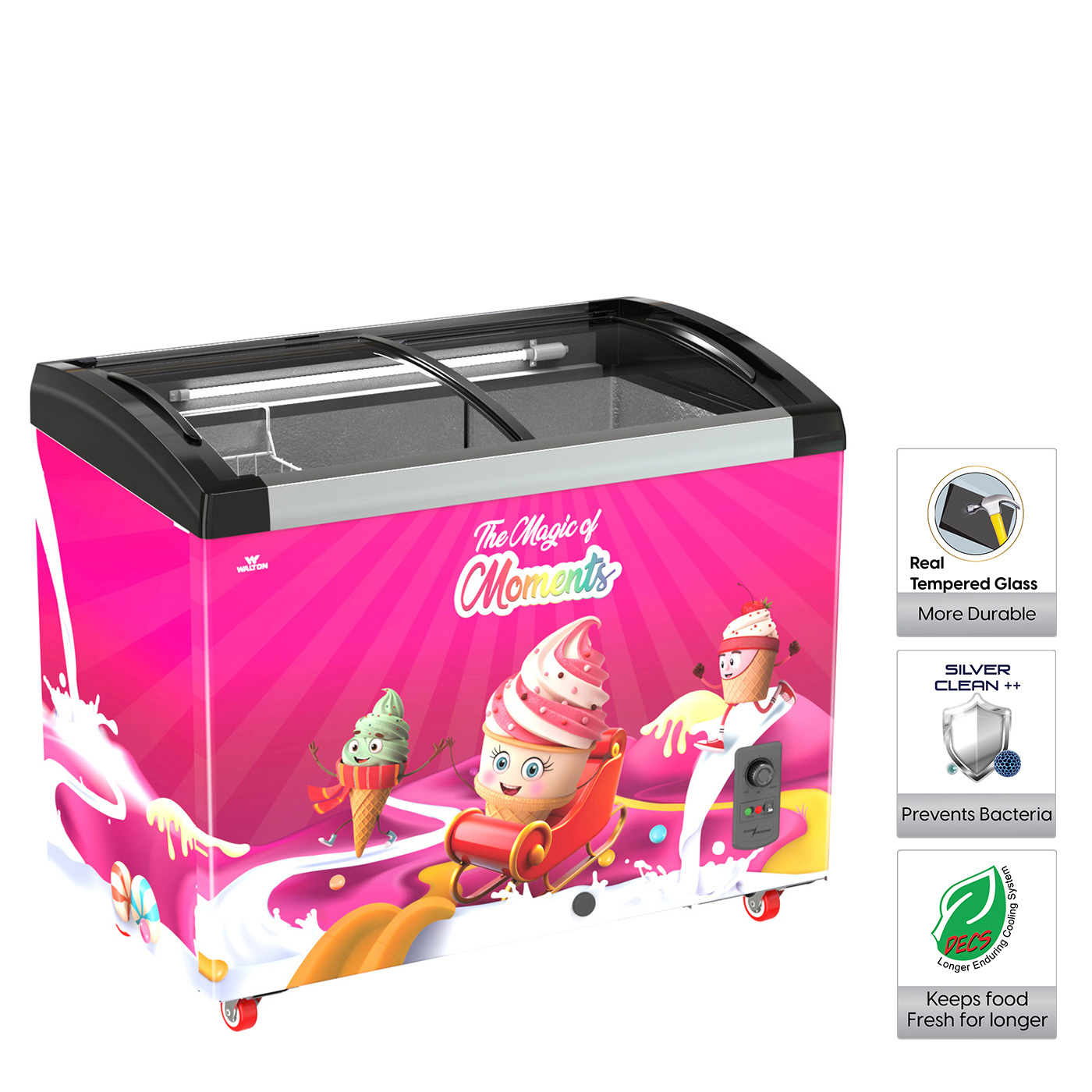

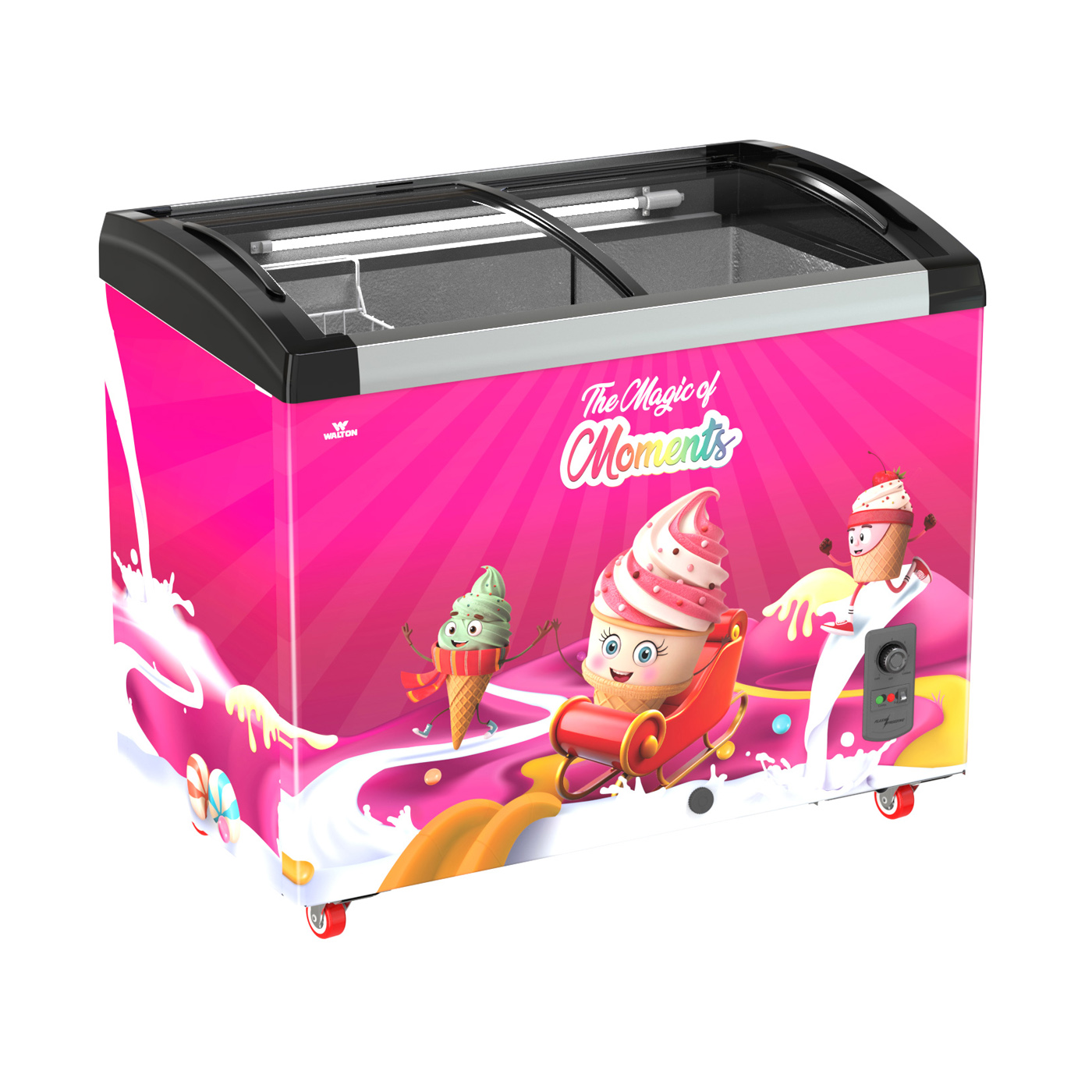

   - Category: Ice Cream Freezer
​   -
Gross Volume: 270 Ltr
   - Net Volume: 270 Ltr
   - Refrigerant: R600a

Cooling Features :
Cooling Technology Direct Cooling Evaporative System (DECS)
Application Commercial
Capacity :
Gross Volume 270 Ltr.
Net Volume 270 Ltr.
Performance :
Climatic Type (SN, N, ST, T) T
Rated Voltage/ Hz 220 ~ 240/ 50
Compressor Type RSCR
Compressor Cooling Type Static Cooling
Rated Input Power 153W
Rated Input Current 1.1A
Rated Input Power (Lamp) 1W
Wide Voltage Range 150V ~ 260V
Cooling Effect Freezer Cabinet -20℃ to -30℃
Voltage Stabilizer Capacity 2100VA (if Input Voltage is below 150V)
General Features :
Temperature Control (Electronic/ Mechanical) Electronics
Defrosting (Automatic/ Manual) Manual
Reversible Door N/A
Handle (Recessed/ Grip) Yes
Lock Yes
Refrigerant Name R600a
Refrigerant Amount 60g
Condenser 100% Copper
Evaporator Aluminum
Capillary Copper
Foaming Technology Cyclopentene (100% CFC & HCFC Free)
Environmental Impact Eco-friendly & Green Technology
Freezer Compartment :
Exterior Material Painted Steel (PCM)
Ice/ cold water Dispenser No
Shelf (Material/No) No
Drawer No

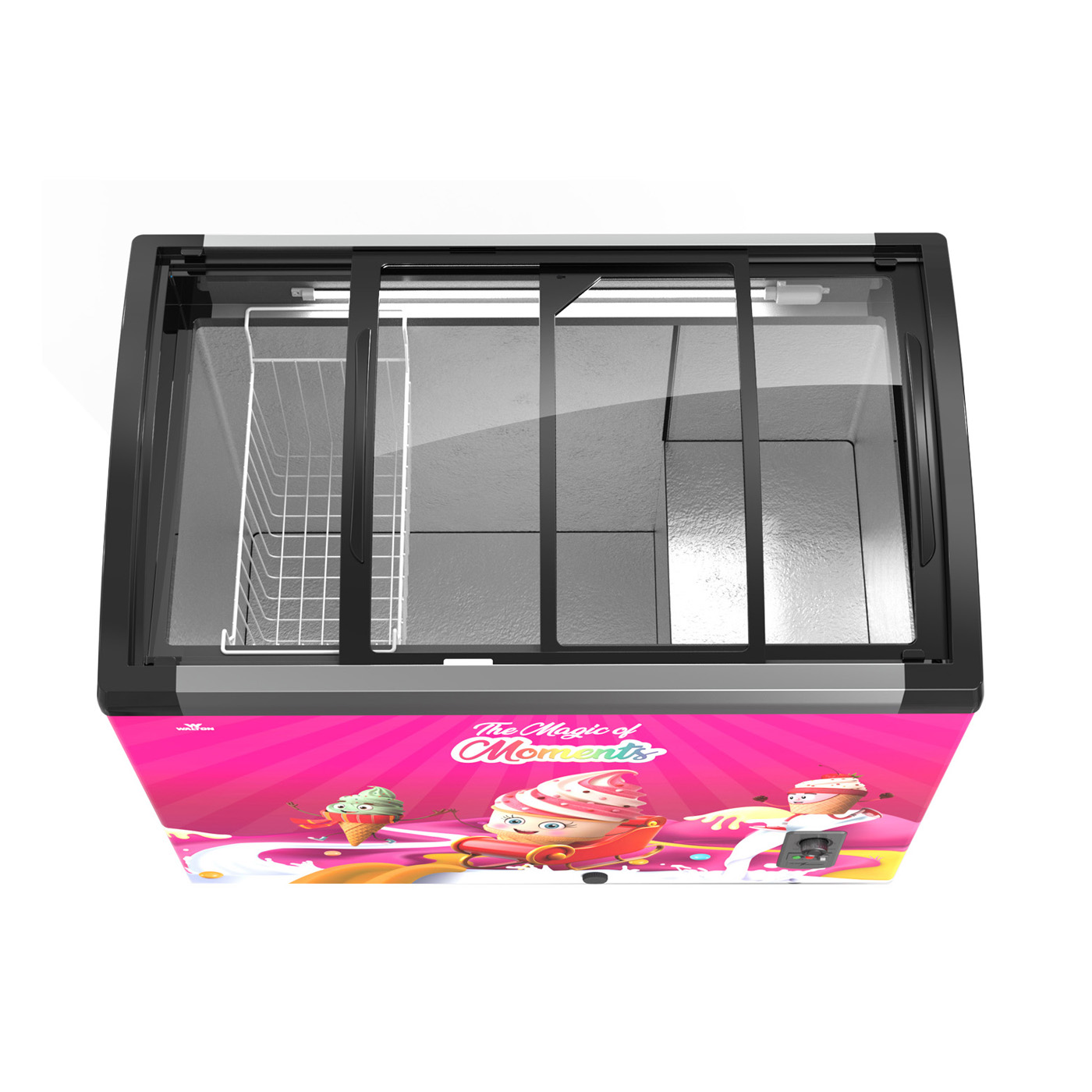

Basket Wire/1
Interior Lamp Yes
Dimensions (Net) :
Width/mm 1080
Depth/mm 702
Height/mm 890
Dimensions (Packing) :
Width/mm 1140
Depth/mm 695
Height/mm 950
Weight/Kg - Net/Packing: 60-53.2 ± 2
Loading Capacity- 40HQ/ 40Ft/ 20Ft
Warranty Information:

Residential Use:
- Replacement Guarantee: 1 Year (Condition Apply)
- Main Parts (Compressor): 12 Years

- Spare Parts: 4 Years *
- After Sales Service:5 Years *

Commercial Use:
- Main Parts (Compressor): 4 Years
- Spare Parts: 2 Years *
- After Sales Service: 2 Years *



This warranty does not cover the following cases:

1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.
2. Any damage or failure caused by unauthorized modification or alteration.
3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.

Authority keeps the right to change, extend, correct, stop or cancel the warranty period without any prior notice.

*This warranty covers only manufacturing defects in products & workmanship, subject to verification by company personnel.

Basic Specification
Type DECS Technology
Category Freezer
Gross Volume 275 Ltr (+/-)
Net Volume 275 Ltr.
Refrigerant R600a
Condenser 100% Copper
Defrosting Manual
Temperature Control Freezer Cabinet less than - 25°C ; Ambient 28°C
Technology Eco-friendly Green Technology
