• WP-2.0-WSJ 3BH WP-2.0-WSJ 3BH
    WP-2.0-WSJ 3BH

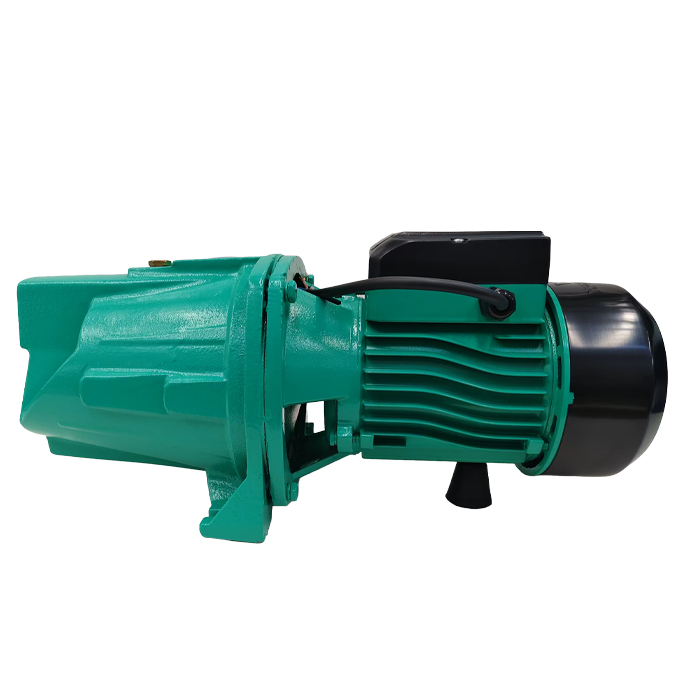

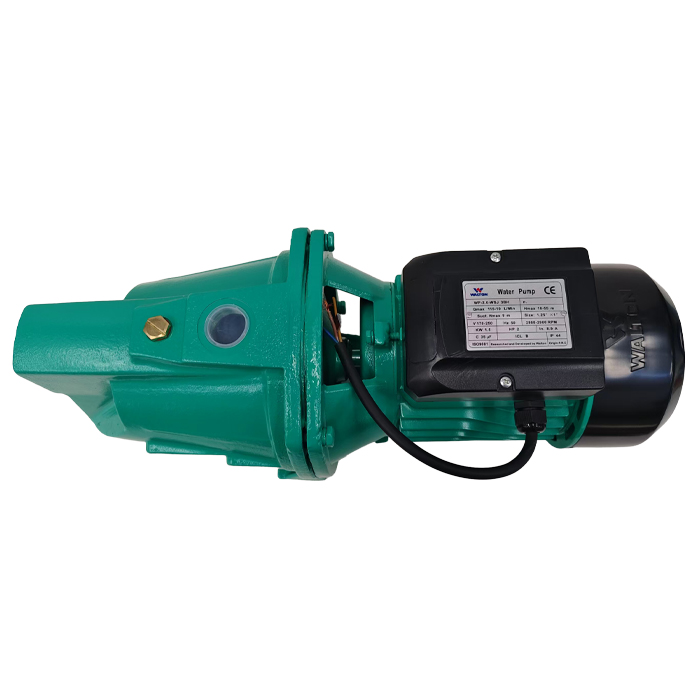

Model

WP-2.0-WSJ 3BH

  • High-efficiency Jet Jump
  • Rewindable & Thermally Protected Motor


General Specifications

Rated Power 2.0 HP (1.5 KW)
Operating Voltage 170 – 250V (AC)
Frequency 50Hz
Q (max) 115-10 liters/min
H (max) 10-55 meters
Suction Head 9 meters
Capacitor 35 uF, 450 VAC
Product Dimension (L*W*H) 51 cm × 20.8 cm × 23 cm
Product Weight 23 Kg


Warranty Information

2 Years
Main Parts
1 Year
Spare Parts
2 Years
After-Sales Service
Note: This warranty does not cover any damage due to accident, electricity fault, natural causes, or negligence. And Authority keeps the power to change, expand, correct, stop, or cancel the warranty period without any prior notice.
Voltage Range 170 - 250V
Fabricated Shaft AISI304
Mechanical Seal Durable
Bearing High-Quality C&U
Insulation Class Class B
Ingress Protection IP44
Duty Cycle S1 Continuous
Power Cable 3 × 1.5  mm²
