• WP-3.0-W2CP 32-160

Model

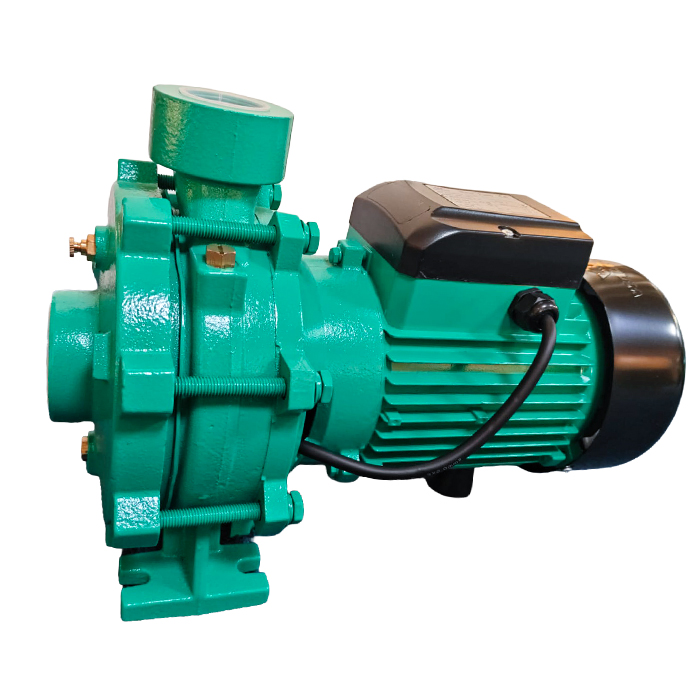

WP-3.0-W2CP 32-160

  • High-efficiency Commercial pump
  • Rewindable & Thermally Protected Motor


Technical Specifications

RATED POWER 3.0 HP (2.2 KW)
OPERATING VOLTAGE 170 – 250V (ac)
FREQUENCY 50Hz
Q (MAX) 200  liters/min
H (MAX) 45-50 meters
SUCTION HEAD 8 meters
CAPACITOR 50 uF, 450 VAC
PRODUCT DIMENSION (L*W*H) 43 × 23 × 28 cm
PRODUCT WEIGHT 29 Kg


Warranty Information

2 Years
Main Parts
1 Year
Spare Parts
2 Years
After-Sales Service
Note: This warranty does not cover any damage due to accident, electricity fault, natural causes, or negligence. And Authority keeps the power to change, expand, correct, stop, or cancel the warranty period without any prior notice.
VOLTAGE RANGE 170 - 250V
FABRICATED SHAFT AISI304
MECHANICAL SEAL Durable
BEARING TYPE High-Quality C&U
INSULATION CLASS Class B
PROTECTION CLASS IP44
DUTY CYCLE S1 Continuous
POWER CABLE 3 × 2.0 mm²
