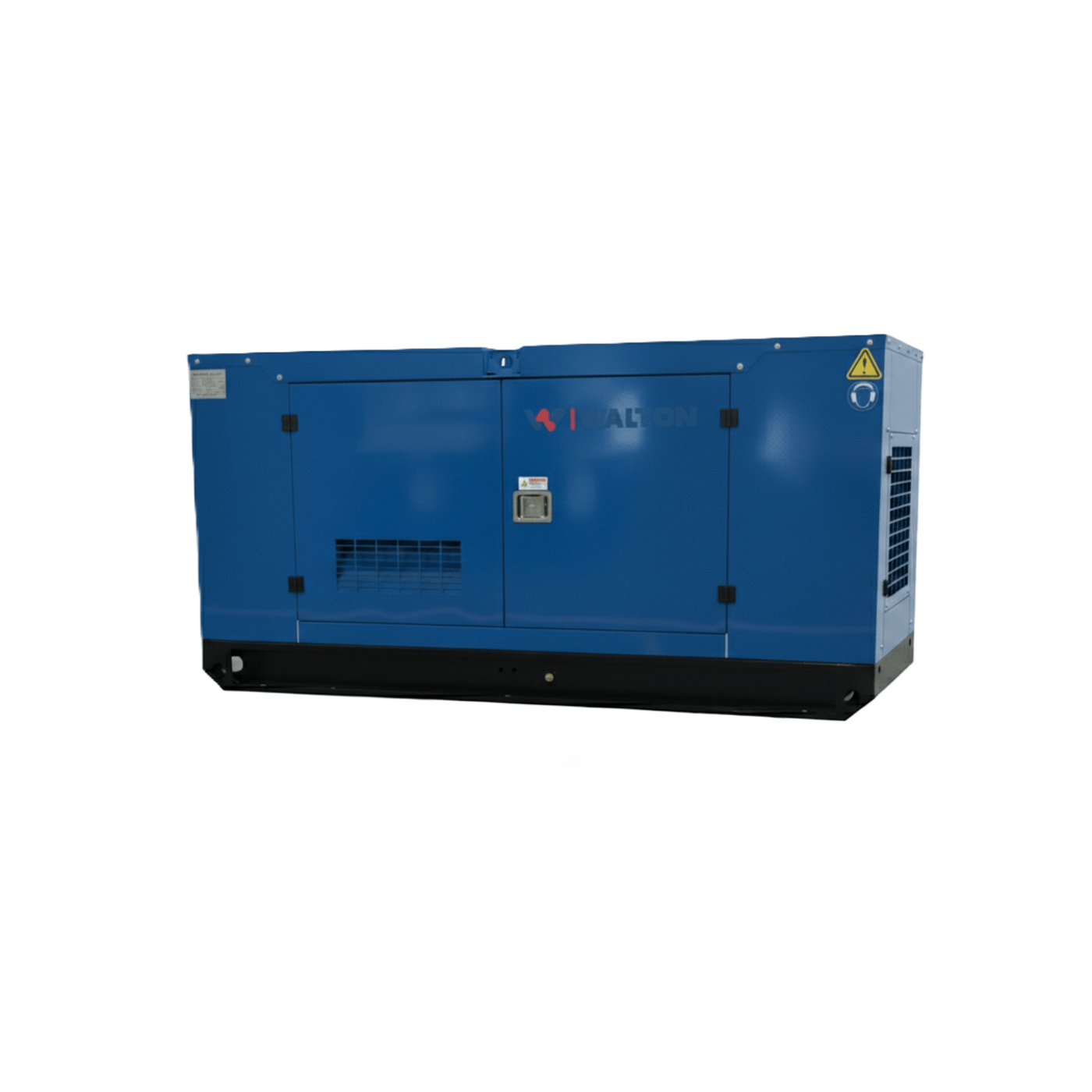

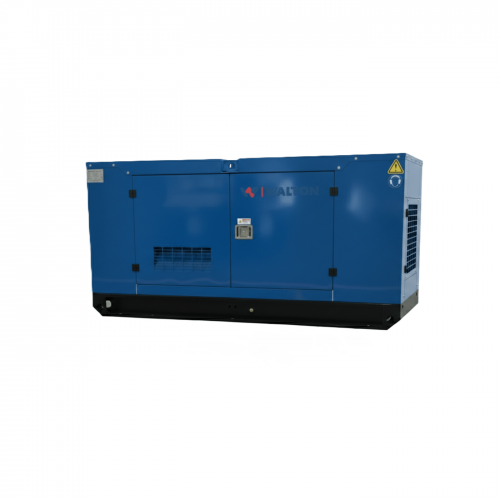

Galvatron 60KVA - CN
- High-performance 4-stroke diesel engine.
- Efficient water-cooled cooling system for reliable operation. - Turbocharged engine for enhanced power and fuel efficiency. - High overall efficiency of up to 88.5%. - IP23 protection for safe and dependable operation. - Self-ventilated air cooled. |
|
Prime Power KVA/KW
|
60 KVA/48 KW
|
| Stand by Power KVA/KW | 66 KVA/ 52.8 KW |
| Overall Dimension (mm) | 2400*1100*1250 |
| Overall Weight (Canopied) | 1155 kg |
| Noise (dB) | 77 |
| Engine | |
| Brand | FAW |
| Model | FAW 4DX23-78D |
| Type of Engine | 4 Stroke Diesel Engine |
| Number of Cylinders | 4 |
| Governing | Electronic |
| Bore/Stroke (mm) | 102 x 118 |
| Displacement (L) | 3.86 |
| Compression Ratio | 17:01 |
| RPM | 1500 |
| Cooling System | Water-cooled |
| Turbo Charger | Turbocharged |
|
Specific Fuel Consumption
Liters/hour:
| |
|
100% Load
|
215g/kWh, 14.6L/H
|
| Weight of Engine (Kg) | 340 |
| Fuel Tank Capacity (L) | 140 |
| Engine oil capacity (L) | 13 |
| Coolant Capacity(L) | 12.5 |
|
Alternator (Generator):
| |
|
Brand
|
LEEGA
|
| Model | LA224G50 |
| Type | Brushless |
| Rated Output Voltage | 380/220 VAC |
| Frequency | 50 Hz |
| Number of Phases and Wires | 3 phase 4 wires |
| Power Factor (Cos Φ) | 0.8 |
| Ventilation | Self-ventilated air cooled |
| Protection Class | IP23 |
| Insulation Class | H |
| Max Voltage Regulation | ±1% |
| Efficiency | 89.30% |
| AVR | Available |
|
Control System
| |
|
Brand
|
ComAp
|
| Model | InteliLite4 AMF 8 |
| Standard meters (what type of data will show?) | GGenset output/genset
voltage/genset current/battery voltage
/fuel capacity/engine speed/engine temperature/running time/Service due
reminder etc. |
|
Standard Protection
Function:
| |
| Engine Protection | 1. Low oil pressure 2. High coolant temperature 3. Low coolant temperature (warning) 4. Overspeed / Under speed (RPM) 5. Start failure 6. Emergency stop activated 7. Battery overvoltage / undervoltage |
|
Alternator Protection
|
1. Overvoltage /
Undervoltage 2. Over frequency / Underfrequency 3. Power factor low /warning |
|
Genset Protection
|
1.Programmable I/O signal 2.Emergency stop |
Warranty Information:
- Main Parts: 1 Year
- Spare Parts: 1 Year
- After Sales Service: 1 Year
The battery is not included in the warranty.
Note: This warranty does not cover any damage due to accident,
electricity fault, natural causes or negligence. And Authority keeps the power
to change, expend, correction, stop or cancel the warranty period
without any prior notice.
– High-performance
4-stroke diesel engine for reliable, fuel-efficient, and long-lasting operation.
– Efficient water-cooled cooling system ensuring stable performance under continuous heavy-duty use.
– TTurbocharged engine providing enhanced power output and improved fuel efficiency.
– High overall efficiency of up to 88.5% for optimal energy utilization and lower operating costs.
– IP23 protection for safe and dependable operation in demanding environments.
– Self-ventilated air-cooled design for effective heat dissipation and consistent performance.
– Efficient water-cooled cooling system ensuring stable performance under continuous heavy-duty use.
– TTurbocharged engine providing enhanced power output and improved fuel efficiency.
– High overall efficiency of up to 88.5% for optimal energy utilization and lower operating costs.
– IP23 protection for safe and dependable operation in demanding environments.
– Self-ventilated air-cooled design for effective heat dissipation and consistent performance.
