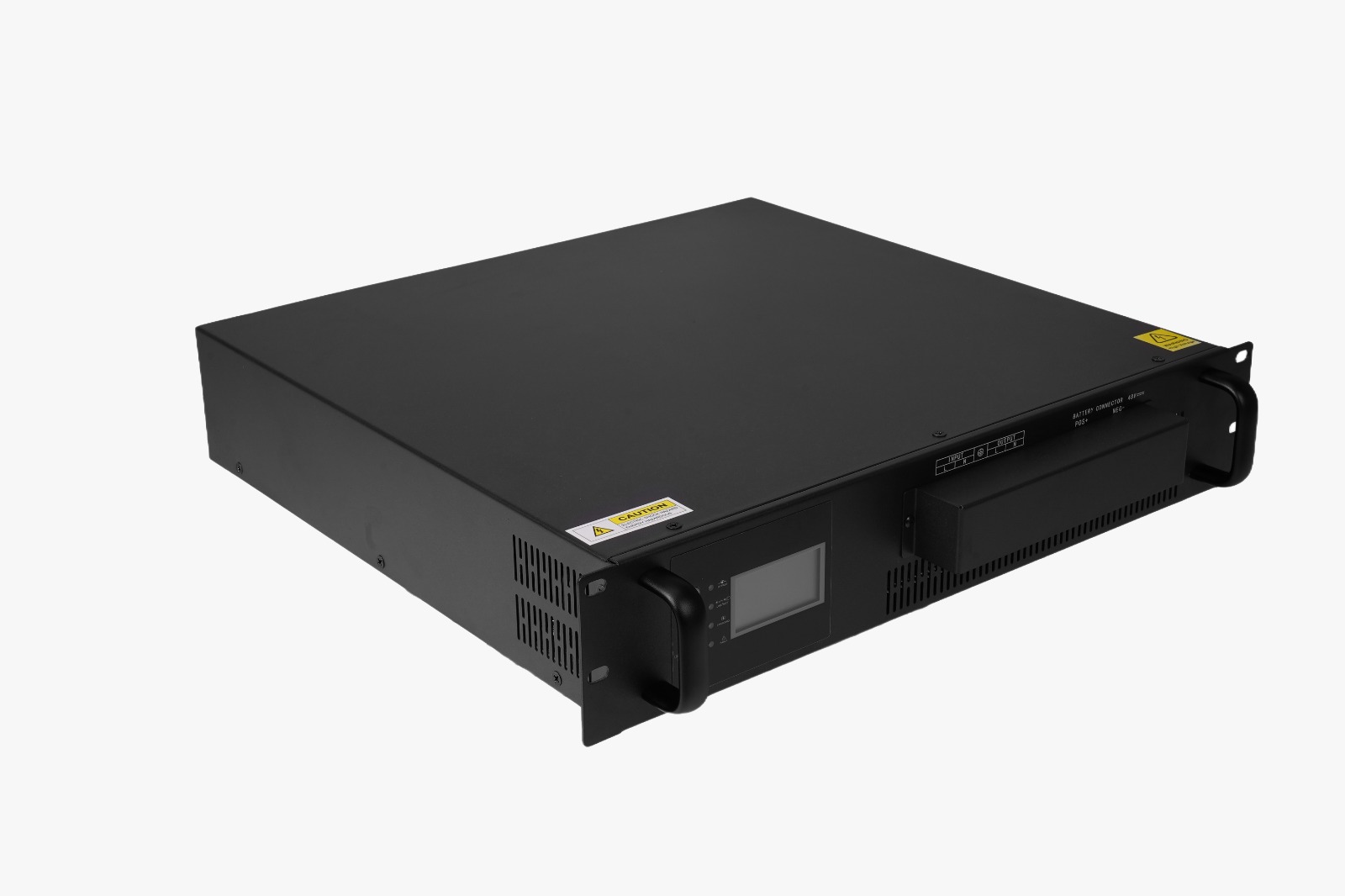

• WALTON ONLINE UPS | UON7

arc ONLINE UPS | arc UON7

Model arc UON7
Capacity 5000VA/5000W
Input Rated voltage: 110–300 VAC
Output Output Frequency Range : 40–70 Hz
Battery Battery Backup Time Requirement : 2 hours (Full Load)
Battery Type  Lithium-Ion (LiFePO4)

Brand

  • WALTON

Model

  • arc UON7

Country of Origin

  • Bangladesh

Country of Manufacture

  • Bangladesh

Inverter

screen
  • Form Factor : Rack/Tower
  • Topology : Double-conversion on-line
  • Capacity : 5000VA / 5000W
  • Power Factor : Greater than or equal of 0.99 (100% Lead)
  • Waveform Type : Sine Wave
  • Input Voltage Range : 110–300 VAC
  • Input Frequency Range : 40–70 Hz
  • Input Connection : Hardwired Terminal
  • Nominal Output Voltage Range : 200–240 VAC
  • Output Voltage Regulation / Distortion : +1% (plus minus 1 percent)
  • Output Frequency Range : 40–70 Hz
  • Efficiency (Battery Mode) : 90%
  • Transfer Time : (AC to DC (Battery): DC (Battery) to AC): 0 (Zero) ms
  • Battery Type : Lithium-Ion (LiFePO4)
  • Interfaces : RS-232 Serial Port or USB Port or Universal I/O or EPO
  • Management : SNMP / Web / Network Management Card
  • Operating Temperature : 0–40°C (0 to 40 degree celcius)
  • Operation Humidity : 0–95% non condensing
  • Noise Level : (<) Less than 60 dB
  • Battery Backup Time Requirement : 2 hours (Full Load)

Battery

screen
  • Form Factor : Rack/Tower
  • Type : Lithium-Ion (LiFePO4)
  • Nominal Capacity : 200AH
  • Energy : 9.6 Kwh
  • Cell& Methode : 3.2V200AH 15S1P
  • Standard Charging Current : 100A
  • Standard Dis-Charging Current : 100A
  • Battery Weight G.W : 87.8 Kg
  • Dimension : 630×490×255 mm (LWH)
  • Battery Output Voltage : 51.2~54.4V
  • IP Protection : IP 21
  • Features : Standardized design: Standard 3U and 4U case, good applicability; In parallel to enlarge energy: Add the current limiting module, support multiple battery parallel use, expand the battery capacity, meet the high energy demand of customers Intelligent lithium battery management system: With RS485 communication, you can monitor the battery status at any time and set protection parameters such as charge and discharge according to customers’requirements Balancing: Automatic collection of
