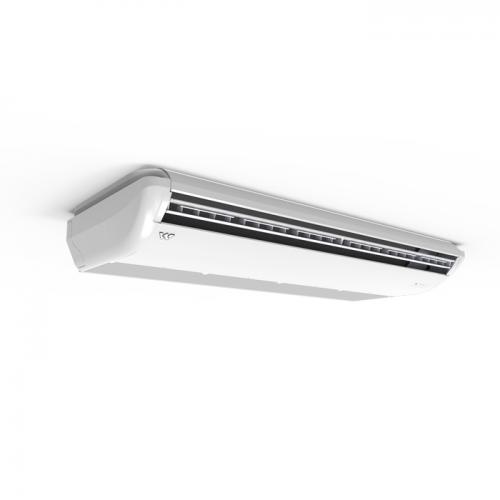

WFN-42K-RXXXD |
|
| Air Conditioner Type | Ceiling Air Conditioner |
| Function | Cooling |
| Cooling Capacity | 42000 BTU/hr |
| Compressor | Scroll |
| Refrigerant | R-410a |
| Product Catalogue | |
| Light Commercial AC English Catalogue |  |
LCAC product catalogue includes the following information- • Technical specifications of Inverter and Non-Inverter model • Features of Walton light commercial air conditioner • History of Walton light commercial air conditioner • Research & innovation lab facilities NOTE: Walton management reserves the right to modify any technical specifications or features, if necessary.
|
|
Basic Features
| Function: | Cooling |
| BTU/hr: | 42000 |
| Cooling Capacity (watts): | 12300 |
| COP: | 2.65 |
| Rated Input Power (Watts): | 4650 |
| Power Supply (phase/voltage (V) /frequency (Hz) /current (A)): | Three/ 380-400/ 50/ 8.40 |
| Air Circulation (m3/h): | 1800 (High speed mode) |
Cooling Features
| Compressor Type: | Scroll |
| Refrigerant Type: | R-410a |
| Refrigerant Amount (kg): | 2400 (for 6m service pipe) |
| Outdoor Operating Range (outdoor temperature): | 200C – 430C |
| Fin Type: | Louvered Fin |
| Maximum Pipe Length: | 6m |
Operations
| Modes | Auto Operation: | Yes |
| Dry Mode: | Yes | |
| Fan Mode: | Yes | |
| Speed Setting: | Yes (Auto, High, Medium, Low) | |
| Auto Restart | Yes | |
| Comfort Cooling | Yes | |
| Timer | Yes | |
| Sleep | Yes | |
Air Deflection
| Auto UP-Down Swing: | Yes |
Remote Control
| Display Type: | LCD |
| Operation/Control: | Via IR (Infrared Ray) |
| Temperature Unit Change: | 16 - 31 |
Dimensions
| Indoor (mm) [LXWXH]: | 1760X765X311 |
| Outdoor (mm) [LXWXH]: | 1030X400X1000 |
| Guarantee/Warranty Information | ||
Product Replacement Guarantee: 1 Year (Note: if there are manufacturing faults in the heat exchanger & compressor) |
||
| For Commercial Usage | Compressor Guarantee: 5 Years | |
| Spare Parts Support: 2 Years | ||
| After Sales Service: 1 Year (Free) |
||
| Terms & Conditions | ||
|
1. This warranty does not cover the following cases -
i) If the product is misused, neglected, or rented on a commercial basis. The warranty also will be invalid if repaired, replaced or modified by unauthorized service personnel.
ii) If the product serial number/barcode is removed, altered, or duplicated.
iii) Product defects due to incorrect or negligent storing or use of the products.
iv) Failure to start due to voltage conditions, blown fuses or other damage due to inadequacy or interruption of electrical service.
v) Product defects due to exposure to extreme conditions, e.g. thunder, lightning, water ingress, fire, obstacle to deliver indoor & outdoor airflow.
vi) Damage / failure of product due to rat, cockroach and insects attack etc.
vii) If unit installed in hazards environment by chemical fume, corrosive environment like acid solution, sulfur solution, hydrogen per oxide, sodium sulfate salt, hydrogen Sulfide, Chlorides, bleaching powder, ammonia, chlorine. IPA/Thinner etc.
viii) If unit install in kitchen/oily environment and any heat element/source very near to indoor and outdoor.
|
||
|
3. This warranty covers only manufacturing defects, subject to verification by company personnel.
|
||
|
4. After sales service will be applicable only at company authorized service points.
|
||
|
5. Authority reserves the right to change, extend, correct, stop or cancel the warranty period without any prior notice.
|
||
| User Manual | |
| Ceiling Type English User Manual | |
The Above User Manuals Discuss About The Below Contents- Available Models, Safety Precautions, Name of Each Part, Use Method of Remote Controller, How To Get The Best Efficiency, Maintenance, Malfunction Check, Error Code Analysis, Installation Place, Installing The Indoor Unit, Installing The Outdoor Unit, Installing The Electric Wire, Installing Panel And Trial Operation and etc… Note: In order to operate and use this product correctly and safely, this instruction manual should be read carefully before operation. Keep it in a safe place after reading, for future reference.
|
|
| Basic Features | |
| Heating Rated Current (A) | 42000 BTU |
| Basic Specification | |
| Type | Non-Inverter |
| Refrigerant Type | R-410a |
