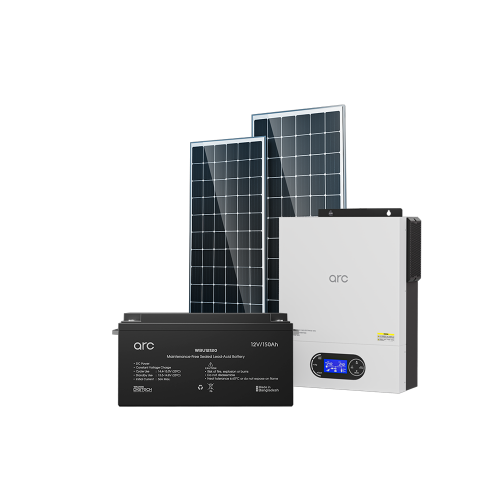

Solar Panel Features:

• • Solar Panel Model Type: RT230N
  • Rated Maximum Power (Pmax): 230W
  • Power Tolerance Range: 0~+5W
  • Open Circuits Voltage (Voc): 23.45V
  • Peak Voltage (Vmp): 19.30V
  • Short Circuit Current (Isc): 12.47A
  • Peak current (Imp): 11.92A
  • Max System Voltage: 1000V
  • Max Series Fuse Rating: 15A
  • Weight: 10.7 Kg
  • Module Application: Class A
  • Dimension (mm): 1525*670*35
  • Efficiency: 22.51%
  • STC: All technical data at standard test condition: Am 1.5 E=1000W/m3, Tc=25°C
  • Warranty : 12 Year Effeciency,20 Year Performance

Solar Hybrid Inverter Features:

• • Solar Inverter Model:ISFG-01
  • Rated Power: 2050VA/1600W
  • AC INPUT
  • Voltage: 230VAC（220VAC/240VAC)
  • Selectable Voltage Range: 170-280VAC（For Personal Computers）；90-280 VAC（For Home Appliances）
  • Frequency Range: 50/60Hz（Auto sensing）
  • AC OUTPUT
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5%
  • Surge Power: 3200VA
  • Efficiency (Peak): 93%
  • Transfer Time: 10ms（For Personal Computers）；20ms（For Home Appliances）
  • Wave Form: Pure sine wave
  • Battery Voltage: 12VDC ,145A
  • Floating Charge Voltage: 13.5VDC
  • Overcharge Protection: 16VDC
  • SOLAR CHARGER AC CHARGER
  • Maximum PV Array Open Circuit Voltage: 500VDC
  • Maximum PV Array Power: 2000W
  • MPPT Range Operating Voltage: 60~450VDC
  • Nominal PV voltage: 260VDC
  • Maximum Solar Charge Current: 80A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 80A
  • GENERAL PARAMETERS
  • Operation Temperature: -10°C to 50°C
  • Relative humidity: 5% to 95% Relative Humidity (Non-condensing)
  • Dimensions D x W x H(mm): 348*270*95
  • Net Weight(KG): 5
  • Gross Weight(KG): 5.5
  • Feature of ARC ISFG-01
  • Pure Sine wave inverter
  • Soft Touch Panel Easy Access
  • MPPT Charging Mode
  • Selectable high power charging current
  • Wide DC input Range
  • Selectable input voltage range
  • Configurable Solar/Utility/Battery priority via LCD
  • Compatible AC Main/Generator Power
  • Auto restart when AC is recovering
  • Overload and Short circuit protection
  • BMS Support
  • Smart Battery optimize battery performance of life.
  • Cold start function
  • Optional Anti Dusk Kit

Battery Features:

• • Model: arc WBU 12150AH
  • DC Power: 12V150AH
  • Constant Voltage Charge
  • Cycle Use: 14.4-15.0V (25 Degree)
  • Standby Use: 13.5-14.8V (25 Degree)
  • Initial Current: 45A

Other Features:

• Battery cable (Red & Black): 1 Meter
• Cable Lug 16RM for IPS: 2 Pcs
• MC-4 Connector for Panel: 1 Pair
• Double Pole Circuit Breaker: 3 Pcs
